| Product Name: | PCB Unloader | Power: | AC110V/AC220V,50/60Hz |
|---|---|---|---|
| PLC: | Panasonic | PCB Width: | 50*50~330*250mm |
| Transport Belt: | ESD Flat Belt | Pcb Direction: | L-R Or R-L(customized) |
| Transport Height: | 910±30mm | Warranty: | 1 Year |

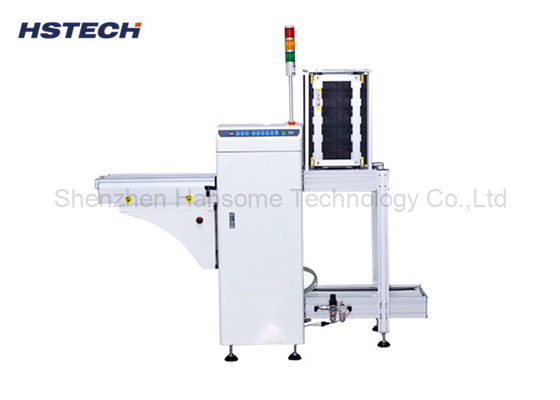

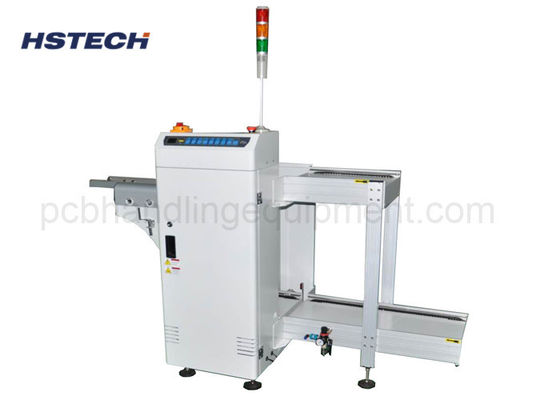

Flat Belt Button Control Panasonic PLC Sick Sensor PCB Unloder Machine
Introduction
This units used to collect the PCBs into the magazines at the end of SMT line.
Features
1, Module design.
2, Stability enhanced by robust design.
3, Economic design arm test.
4, Smooth and parallel width adjustment.
5, Three magazine racks application.
6, Top and bottom pneumatic clamps to secure magazine rack.
7, No PCB breakage guaranty during loading &unloading.
8,SMEMA compatible.
1, Module design.
2, Stability enhanced by robust design.
3, Economic design arm test.
4, Smooth and parallel width adjustment.
5, Three magazine racks application.
6, Top and bottom pneumatic clamps to secure magazine rack.
7, No PCB breakage guaranty during loading &unloading.
8,SMEMA compatible.
Specification
| Function | This unit is used for unloading the PCBs. |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine change over time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Pitch selection | 1-4(10mm pitch) |
| Signal | SMEMA |
Model selection
| Model | HS-UL250 | HS-UL330 | HS-UL390 | HS-UL460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1900*800*1200mm | 2320*880*1200mm | 2620*940*1200mm | 26200*1080*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 220kg | 280kg | 320kg |
