SMT Line SS304 20M/Min 40mm Pitch PCB Loader Machine

SMT Line SS304 20M/Min 40mm Pitch PCB Loader Machine
SMT Line SS304 20M/Min 40mm Pitch PCB Loader Machine SMT Line SS304 20M/Min 40mm Pitch PCB Loader Machine

Large Image :  SMT Line SS304 20M/Min 40mm Pitch PCB Loader Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-LD390
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 15~20 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description

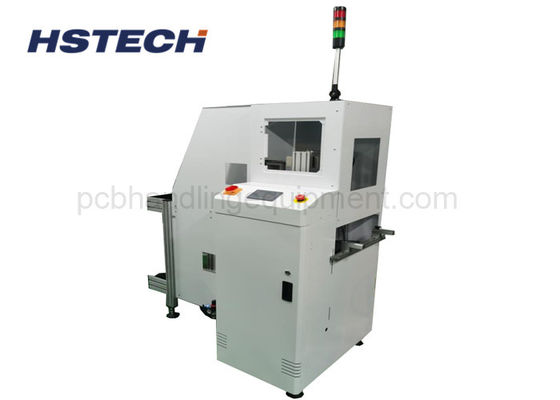

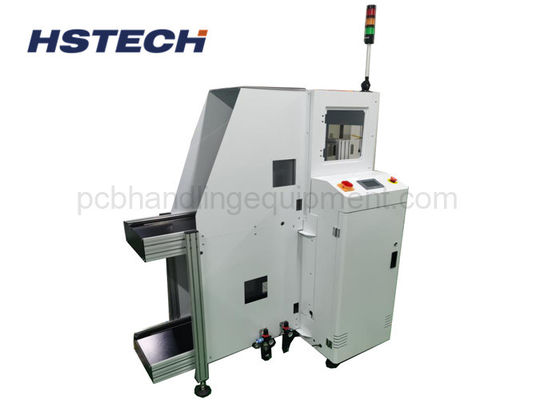

Product Name: PCB Loader With Dust Protective Cover Other Name: SMT Line PCB Loading Machine
Power Supply: AC110V/220V,50/60Hz Air Pressure: 4-6 Bar
PCB Thickness: Min 0.4mm Pitch Selection: 10-40mm
Conveyor Speed: 0.5-20M/min Or Customized Communication: SMEMA
High Light:

40mm Pitch PCB Loader Machine

,

20M/Min PCB Loader Machine

,

SS304 PCB Loading Machine

Enclosed Design Standard PCB Loader Machine with Dust-proof Cover



Application



This unit is used for loading the PCBs,and transporting the PCB on the SMT production line.



Features



1, Enclosed design, anti-dust, well protect the PCBs.

2, Observation window, operator can watch the working process clearly.

3, Stainless steel machine body, stable with long lifespan.

4, Stability enhanced by robust design.

5, Smooth and parallel width adjustment.

6, Three magazine racks application.

7, Top and bottom pneumatic clamps to secure magazine rack.

8, No PCB breakage guaranty during loading &unloading.

9,SMEMA compatible.



Specification



Product name PCB Loader Machine
Transport height 910±30mm
PCB loading time Approx 6 seconds
Magazine replace time Approx 30 seconds
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side(or specify)
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 2 pc
Pitch selection 1-4(10mm pitch)
Conveyor speed 0.5-20M/min or customized
Signal SMEMA



Model selection



Model HS-LD250 HS-LD330 HS-LD390 HS-LD460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine Size 1400*800*1200mm 1650*880*1200mm 1800*940*1200mm 1800*1010*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 180kg 220kg 260kg
