| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-460-CY |
| Minimum Order Quantity: | 3 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 10~14 days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
| Product Name: | SMT Conveyor | Other Name: | Link Conveyor |
|---|---|---|---|
| Color: | Blue,Grey,white | Transport Belt: | ESD Flat Belt |
| Belt Thickness: | 1.0 Mm | Voltage: | 1P AC 110V/220V 50/60HZ |
| Warranty: | 1 Year | Packing: | Wrap, Wooden Box |
| Highlight: | Hand Crank PCB Transporting Conveyor,ESD Belt PCB Transporting Conveyor,LED Button SMT Link Conveyor |
||

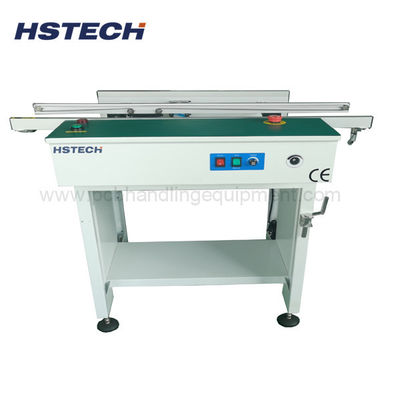

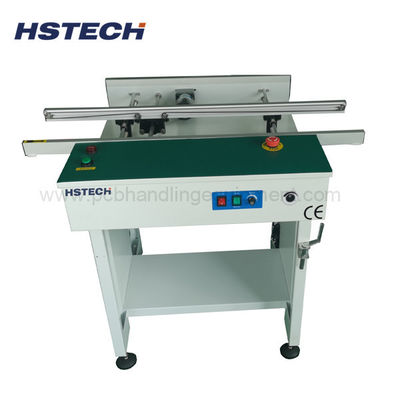

LED Button Manual Hand Crank Width Adjustment ESD Belt PCB Transporting Conveyor
Features
1, Stable stainless steel structure.
2, Hand crand width adjust.
3, Black transpoting belt, 1.0mm thickness.
4, Aluminum alloy transporting rail.
5, LED button control, speed adjustment motor.
6, Optional function available, tower light, inspection, dust cover, etc.
7, Customized requirement available.
8, Length available, 600mm, 1000mm, 1500mm, or optional.
9, SMEMA signal for inline connection.
Specification
| Model | HS-C600/HS-C1000 | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
