Y Axis 1.0 Thickness Wire 360° Rotation Auto Solder Robot RS232

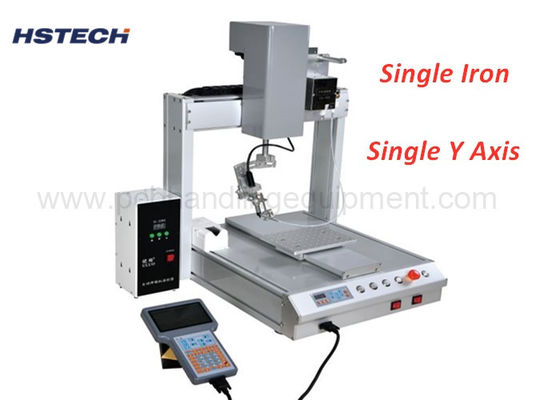

Single Y Axis Manual Programming 1.0 Thickness Solder Wire Auto Solder Robot

Introduction

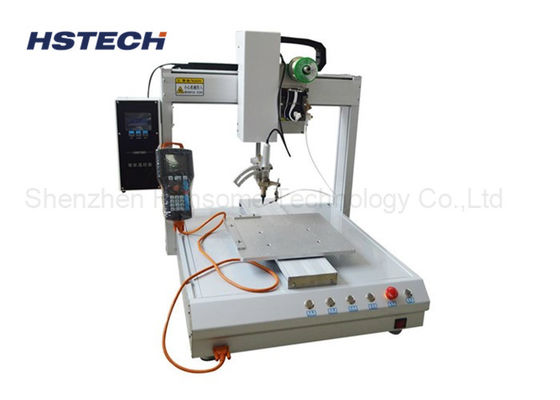

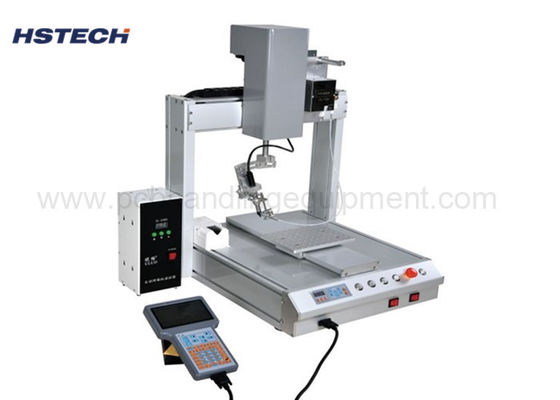

This automatic soldering machine we called it 4 axis automatic soldering machine, X,Y,Z and 360 degree Rotation axis, the machine adopt the air pressure and electricity driven, through the teachpant box for manual programing each points, then start the automatic soldering. This machine mostly use for add tins on the PCBA, or solder cables, save more labor and improve the production efficiency.

Features

1, 4 Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The soldering iron without nitrogen, very safety and environment protective,

3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.
4, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

7, With the handheld teaching pendant, the programming is simple and easy to learn.

Specification
