9m/Min 300A MITSUBISHI PLC PCB Surface Cleaner With Dust Collector

9m/Min 300A MITSUBISHI PLC PCB Surface Cleaner With Dust Collector
9m/Min 300A MITSUBISHI PLC PCB Surface Cleaner With Dust Collector 9m/Min 300A MITSUBISHI PLC PCB Surface Cleaner With Dust Collector 9m/Min 300A MITSUBISHI PLC PCB Surface Cleaner With Dust Collector

Large Image :  9m/Min 300A MITSUBISHI PLC PCB Surface Cleaner With Dust Collector

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-460BC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 12~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Surface Dust Cleaner Other Name: PCB Dust Cleaner
Power Supply: AC100-230V PLC: MITSUBISHI
Sticker Roller: 2 Pcs Brush: 1 Pc
Ionizer: 2 Pcs Keyence Condition: New
High Light:

9m/Min PCB Surface Cleaner

,

MITSUBISHI PLC PCB Surface Cleaner

,

300A PCB Surface Dust Cleaner

Touch Screen Control Single Side PCB Surface Cleaner with Dust Collector



Introduction



This machine is designed to remove dirty from bare boards before solder paste printing, or other adhesive application. The machine first use a brush to cleaning, then use a ionizer bar to cleaning the static electricity, and after that use a roller together with 2 pcs sticker rollers, at the end also use a ionizer to cleaning the static electricity. The design of the machine will ensure the SMT lines more intelligent at the beginning of the production, it provide a more clean board before PCBA production, make the products more precision and high end.



Specification



Model HS-DC250 HS-DC330 HS-DC390 HS-DC460
PCB dimension (50*50)~(350*250) (50*50)~(460*330) (50*50)~(530*390) (50*50)~(530*460)
Machine dimension 555*820*1350 555*900*1350 555*960*1350 555*1030*1350
Weight 80kg 90kg 100kg 110kg



PCB Transporting height Standard 900±20mm
PCB flow direction Left to right
PCB thickness 0.4~5mm
Power supply AC100~240V,single phase,300A
Air supply 0.4~0.6Mpa
Cleaning brush 1 pc,ESD,high precision brush
Ionizer 2 pcs(Keyence)
Sticker roller 2 pcs
Roller 1 pc
Dust collector 1 pc
Transport speed 0~9m/min,adjustable
Cycle time Around 8s



Features



1, The machine produced with a high precision testing, make sure the sticker roller cleaning fully touching the PCB surface.

2, PCB surface cleaning without any interspace.

3, Double ionizer cleaning ensure the static electricity cleaned fully.

4, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
5, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
6, Equipped with the static eliminate function, completely eliminate electrostatic interference.
7, Mechanical parts draw-out design, maintenance is simple.
8, Interface display in English and Chinese, interface operation convenient and simple.

9, The machine also can used after PCB laser marking.

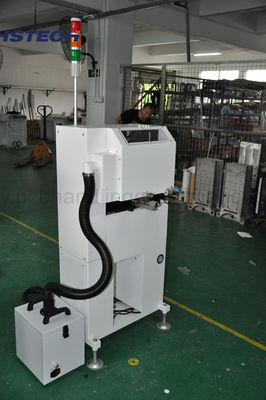

9m/Min 300A MITSUBISHI PLC PCB Surface Cleaner With Dust Collector 0

9m/Min 300A MITSUBISHI PLC PCB Surface Cleaner With Dust Collector 1

9m/Min 300A MITSUBISHI PLC PCB Surface Cleaner With Dust Collector 2
