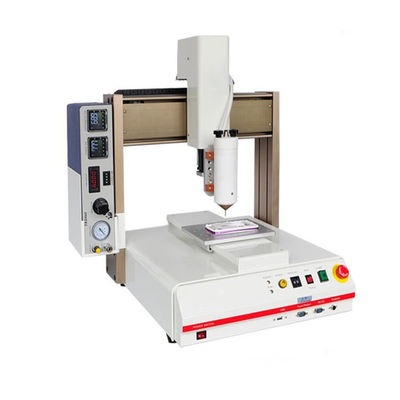

AB Glue Dispensing Machine with 300mm/s Speed, ±0.02mm Repeat Accuracy, and 1:1-10:1 Glue Mixing Ratio

Brand Name:	HSTECH
Model Number:	HS-D331AB
MOQ:	1 pc
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

AB Glue Dispensing Machine

Other Name:

4 Axis Glue Dispensing Machine

XYZ Working Range:

300*300*100mm

XYZ Speed:

Max 300mm/s

Glue Mixing Ratio:

1:1-10:1

Dispensing Precision:

Glue Amount±1%, Glue Proportion±1%

Drive System:

Stepping Motor + Timing Belt

Repeat Accuracy:

±0.02mm

Packaging Details:

Wooden package, with foam

Supply Ability:

100pcs per week

Highlight:

Single Platform Glue Dispensing Equipment

AB Glue Dispensing Equipment

350W Single Platform Dispensing Machine

Product Description

AB Single Platform Glue Dispensing Equipment 350W 300mm/S

AB Glue Mixing Single Platform Fixture Needed Glue Dispensing Machine

Machine Features

PC computer LCD screen operation, easy to program, easy to learn and understand
Functions include drawing points, lines, faces, arcs, circles, and continuous tween of irregular curves for any 3D non-planar track path
Programmable glue volume, dispensing speed, dispensing time, and stop time
Special dispensing controller ensures stable glue output, clean dispensing, and leak-free operation
Rapid dispensing on inner/outer walls, vertical surfaces, gaps, and spherical surfaces
Customizable with fixtures, glue guns, controllers, and heating temperature control devices

Technical Specifications

ITEM	SPEC
Glue Mixing Ratio	1:1-10:1/Customizable
Dispensing Speed	10-150g/5s (based on 1:1 glue proportion)
Dispensing Precision	Glue Amount ±1%, Glue Proportion ±1%
X/Y/Z Working Range	300300100mm (Z axis can be rotated)
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeatability	±0.02mm
Pattern	Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision	Amount ±1%, Ratio: ±1%
Operation Method	Auto
Programming	Teach Pendant
Control	Board card
Leak-proof Function	Valve with Vacuum Device
Weight	65kg
Dimension (LWH)	716585645mm
Power Supply	220V 50-60Hz 350W

About HSTECH

Shenzhen HanSome Technology Co., Ltd (HSTECH) was established in 2012 by professional and experienced engineers with extensive background in EMS companies. We initially specialized in PCB handling equipment and have since expanded to develop PCB depaneling machines and SMT cleaning machines.

HSTECH maintains both a professional technical team for R&D and an experienced marketing team that researches market trends, updates products, and develops new technologies to meet evolving industry demands. Over the years, we have consistently innovated to create cost-efficient products that help customers reduce costs, minimize labor requirements, and improve production efficiency.

Our company goal is "High quality and Smart," based on the principle of "Quality-Oriented and Customer-Oriented," combined with industry features and smart technology pursuit for smart factory implementation. For after-sales service, we adhere to the principle of "responsibility," responding immediately to quality feedback and providing continuous support to our customers.
