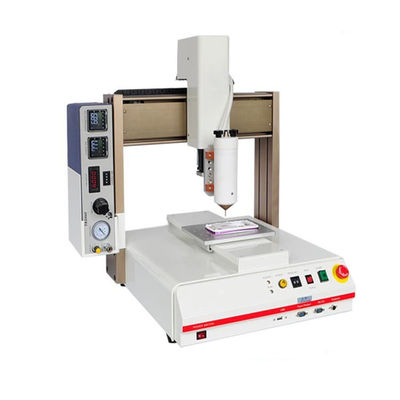

AB Single Platform Glue Dispensing Equipment 350W 300mm/S

AB Single Platform Glue Dispensing Equipment 350W 300mm/S

  • AB Single Platform Glue Dispensing Equipment 350W 300mm/S
  • AB Single Platform Glue Dispensing Equipment 350W 300mm/S
AB Single Platform Glue Dispensing Equipment 350W 300mm/S
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-D331AB
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden package, with foam
Delivery Time: 5~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Product Name: AB Glue Dispensing Machine Other Name: 4 Axis Glue Dispensing Machine
XYZ Working Range: 300*300*100mm XYZ Speed: Max 300mm/s
Glue Mixing Ratio: 1:1-10:1 Dispensing Precision: Glue Amount±1%, Glue Proportion±1%
Drive System: Stepping Motor + Timing Belt Repeat Accuracy: ±0.02mm
High Light:

Single Platform Glue Dispensing Equipment


AB Glue Dispensing Equipment


350W Single Platform Dispensing Machine

AB Glue Mixing Single Platform Fixture Needed Glue Dispensing Machine


Machine feature
1. PC computer LCD screen operation, easy to program, easy to learn and understand.
2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path.
3. The volume of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glue can all be programmed.
4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked.
5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product.
6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heating temperature control devices, etc.




Glue Mixing Ratio 1:1-10:1/Customizable
Dispensing Speed 10-150g/5s(based on 1:1 glue proportion)
Dispensing Precision Glue Amount±1%, Glue Proportion±1%
X/Y/Z Working Range 300*300*100mm(Z axis can be rotated)
XYZ Speed Max 300mm/s
Drive System Stepping Motor + Timing Belt
Repeatability ±0.02mm
Pattern Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision Amount±1%, Ratio:±1%
Operation Method Auto
Programming Teach Pendant
Control Board card
Leak-proof Function Valve with Vacuum Device
Weight 65kg
Dimension(L*W*H) 716*585*645mm
Power Supply 220V 50-60Hz 350W
AB Single Platform Glue Dispensing Equipment 350W 300mm/S 0
AB Single Platform Glue Dispensing Equipment 350W 300mm/S 1
