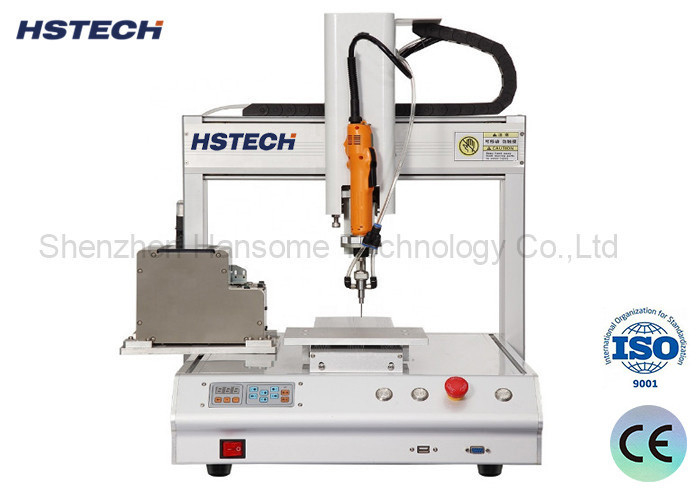

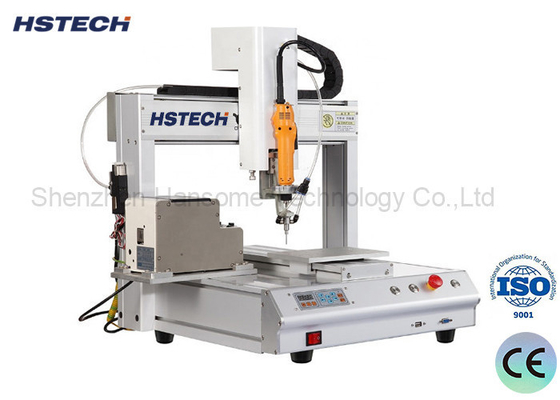

3 Axis Single Slide M6 Screw Locking Machine Desktop Aluminum

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Highlight:

Aluminum 3 Axis Screw Locking Machine

Single Slide M6 Screw Locking Machine

Desktop Screw Tightening Machine

Product Description

Desktop Screw Tightening Robot single slide screw locking machine

Introduction

Screw machine is mainly composed of two core systems: feeding system and locking system. Among them, the feed part, also commonly known as the screw feeder or screw feeder, uses a simple design that arranges the screws in a row to improve work efficiency. As an automation equipment, it has been widely used in the electronics industry, especially for handling screws from M1 to M6 models.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1. Efficient suction feeding: The use of advanced suction feeding technology, significantly improve the feeding speed and overall work efficiency.
2. Flexible operation mode: desktop and visible operation design, easy to integrate into the automatic production line, to achieve seamless connection.
3. Wide moving range: 500500100mm and 600600100mm are available to meet the needs of diverse working conditions.
4. Multi-screw support: Support multi-screw suction silo, improve material handling capacity and flexibility.
5. Multi-functional expansion: Support a variety of expansion applications, including lock screw dispensing, welding, testing, handling, assembly, etc., to achieve a multi-purpose machine.
6. Multi-axis dual-platform options: Provide multi-axis and dual-platform options to meet different production scale and efficiency requirements.
7. Intelligent editing function: It has intelligent editing functions such as regional array replication, platform replication, batch editing, and single step operation to simplify the operation process.
8. Offline operation and parameter saving: After editing operation parameters, you can download them to the controller through the serial port for offline operation. Parameters can also be stored in a handheld box and used on demand.
9. Large capacity file storage: The machine can store hundreds of processing files, each file supports up to 1000 screw bits, easy to quickly call and management.
