Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader

Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader

  • Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader
Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-LD250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: PCB Handling Equipment Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Thickness: Min 0.4mm Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Power Supply: AC220V
Air Pressure: 4-6bar Speed: 200-300pcs/min
Type: Automatic Weight: 140/180/220/260KG

Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader





Specification



Type HS-LD250 HS-LD330 HS-LD390 HS-LD460
Power supply AC100~230V 50/60Hz AC100~230V 50/60Hz AC100~230V 50/60Hz AC100~230V 50/60Hz
Air Supply 5kgf/c M2 5kgf/c M2 5kgf/c M2 5kgf/c M2
PCB Size 50*50~350*250 50*50~455*330 50*50~530*390 50*50~535*460
PCB Direction left to right or right to left
Magazine Size 335*320*563 460*400*563 535*460*570 535*530*570
Step pitches 10,20,30,40mm
Storage capacity 200pcs
Transport height 900±20 900±20 900±20 900±20
Motor power 300W
Machine size 1600*850*1200 2000*950*1200 2250*1050*1200 230*1050*1300
Weight 140kg 180kg 220kg 260kg
Optional control panel touch screen



Features

1. Module design.
2. Stability enhanced by robust design.
3. Economic design arm test.
4. Smooth and parallel width adjustment.
5. Three magazine racks application.
6. Top and bottom pneumatic clamps to secure magazine rack.
7. No PCB breakage guarantee during loading &unloading.
8. SMEMA compatible.

Operation diagram

Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader 0

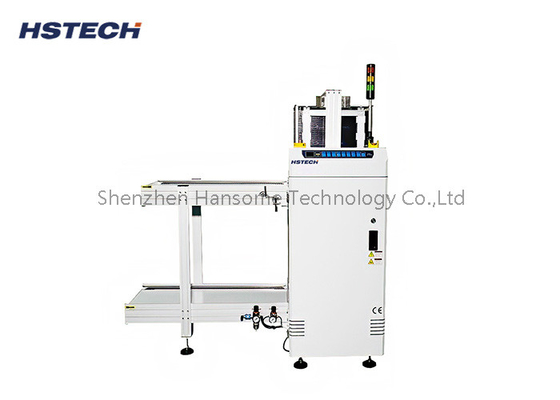

Product physical picture

Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader 1 Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader 2

Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader 3   Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader 4

Application



This machine is a combined machine, it designed as a vacuum loader and normal magazine loader both,it used for the source of the SMT line, transport bare pcb or multi side board out from magazine to downstream machine



About Packaging



Automatic SMT Product Line PCB Equipment Module Design Intelligent Operation PCB Loader 5







Contact Details
Shenzhen Hansome Technology Co., Ltd.

Contact Person: Rudi Jin

Tel: 86-755-23209382

Fax: 86-755-23209382

Send your inquiry directly to us (0 / 3000)
