High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader

High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader
High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader

Large Image :  High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-DS400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Handling Equipment Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Thickness: 0.6-4.0mm Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Power Supply: AC220V
Air Pressure: 0.6bar Speed: 200-300pcs/min
Type: Automatic Weight: 110/130KG

High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader



Specification



Function Used for loading bare PCB to smt line after received down-stream machine signal.
Transport height 910±30mm
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side
PCB thickness 0.6~4.0mm
PCB components height ±35mm
PCB feeding time Approx. 10 seconds or Specify
Board weight ≤3KG
Power supply 220V,50/60Hz,±10%
Power 0.05kW
Air pressure 0.6Mpa
Air consumption <20L/min
Signal

SMEMA



Model HS-DS400 HS-DS530
Efficient PCB length 50~400mm 50~530mm
Transport PCB width 50~400mm 50~500mm
PCB thickness Min 0.6mm Min 1.0mm
Machine dimension 503*770*1200mm 600*920*1200mm
Weight 110kg 130kg



Features

1. Panasonic PLC program control.
2. Traditional and simple LED button Control.
3. Smema signal connection.
4. Manual PCB thickness adjustment.
5. Hand crank PCB width adjustment.
6. LED display light status.
7. Aluminium structure, heavy bottom design to prevent shift.
8. Pass-through mode provided.
9. Only taken 10 seconds to change product line.
10. Uninterrupted Loading.
11. ESD transporting belt.
12. Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.

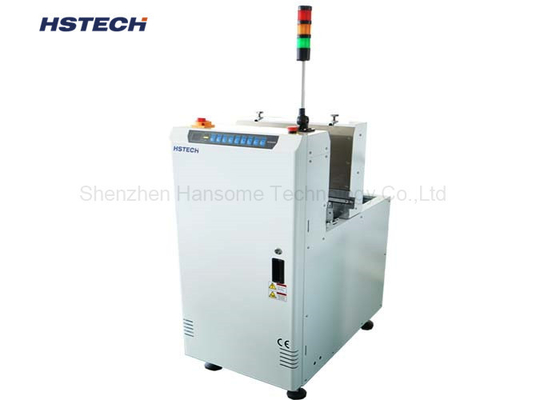

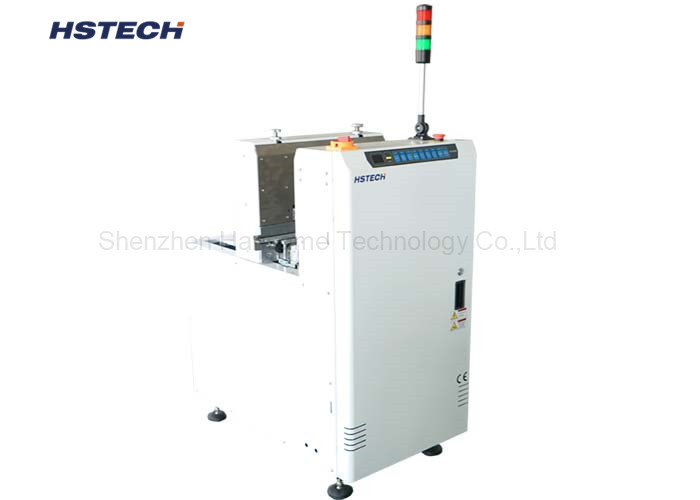

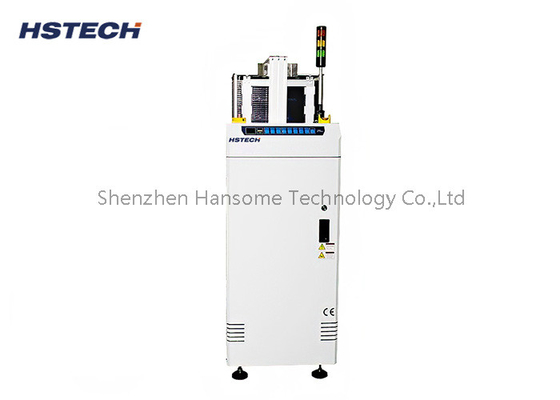

Product physical picture

High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader 0 High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader 1

High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader 2 High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader 3

High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader 4 High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader 5

High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader 6 High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader 7

Application

This machine used for loading bare PCBs to smt line, stack load the circuit boards.



About Packaging



High-Speed Intelligent SMT Production Line Automatic PCB Destacker Board Loader 8
