Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMT Conveyor | Other Name: | Link Conveyor |
|---|---|---|---|
| Transporting Length: | 600 Mm | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Transport Belt: | ESD Flat Belt | Condition: | New |
| Belt Thickness: | 1.0 Mm | Voltage: | 1P AC 110V/220V 50/60HZ |
| Application: | Electronic Assembly | Warranty: | 1 Year |
| Control System: | PLC | OEM/ODM: | Available |
| Packing: | Wrap, Wooden Box | Type: | Automatic |
| High Light: | 600mm Length PCB Handling Conveyor, ESD Belt PCB Handling Conveyor, 390mm PCB SMT Handling Conveyor | ||
Front Operation Automatic PCB 600mm Length ESD Belt PCB Handling Conveyor
Specification
|
Model |
HS-C600/HS-C600S |
|||||
|
Power Supply |
AC220V or AC110V 50/60Hz |
|||||
|
PCB Size |
50*50~500*390mm |
|||||
|
Width adjustment |
Hand crank |
|||||
|
PCB Direction |
Left to right or right to left |
|||||
|
Transmission Height |
900 ± 20 mm |
|||||
|
Transmission Speed |
0.5-20 meters per minute adjustable |
|||||
|
Track fixed side |
front side fixed( or back side fixed for option) |
|||||
|
Machine Length |
0.5M/0.6M/0.8M/1M/1.5M |
|||||
|
Options |
Light,Fan,Magnnifying,Cover,Inspection |
|||||
|
Communication signal |
SMEMA |
|||||
Features
1. Thickness stable stainless steel machine body.
2. Max 390mm PCB width, hand crand width adjustment.
3. Transporting speed adjustment by Knob.
4. ESD green color work table.
5. Aluminum alloy transporting rail.
6. LED button control, speed adjustment motor.
7. Optional function available, tower light, inspection, dust cover, etc.
8. Customized requirement available.
9. Length available, 600mm, 1000mm, 1500mm, or optional.
10. SMEMA signal for inline connection.

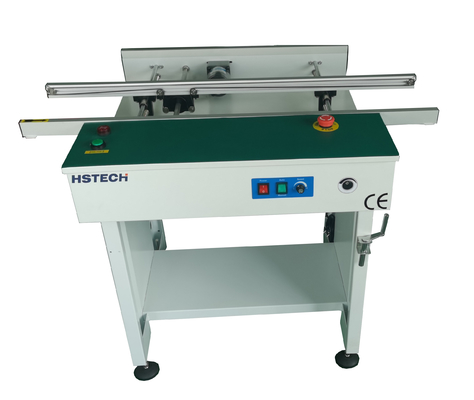

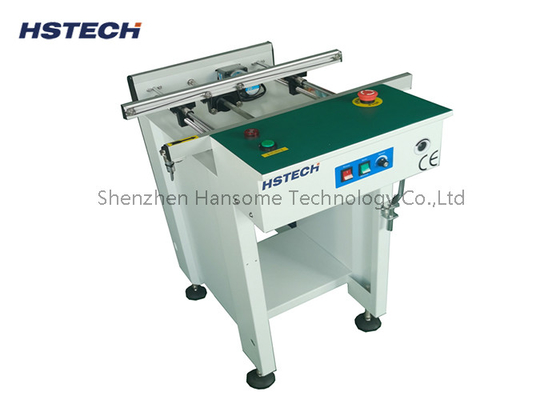

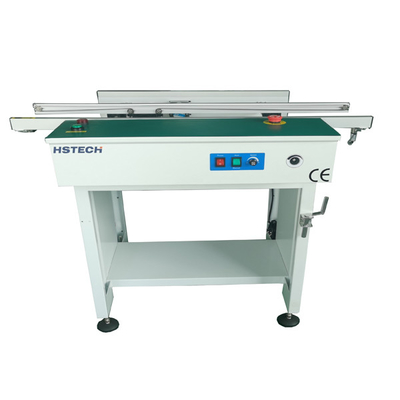

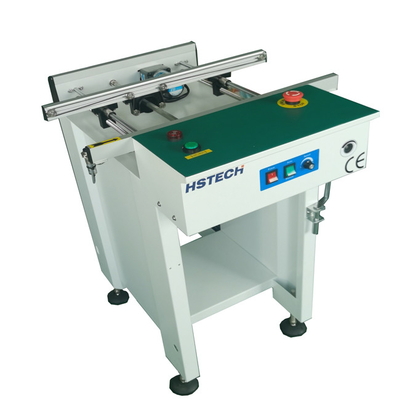

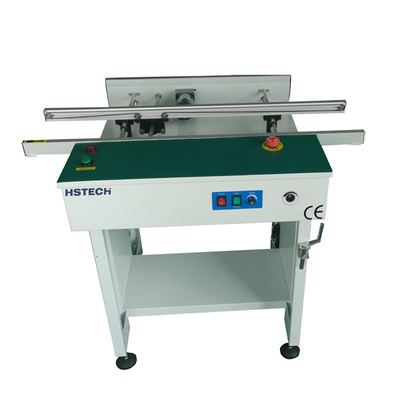

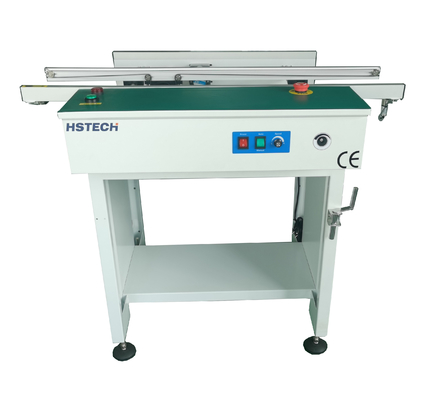

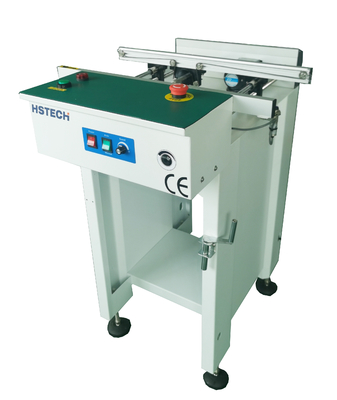

Product physical picture
Application
This machine Used for connection between SMT production lines, it can also be used for buffering, inspection, testing of PCBs, or manual insertion of electronic components
