Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE |
Model Number: | HS-GH350 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package |
Delivery Time: | 7~9 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets per month |
Product Name: | SMT Line SPI AOI Buffer | Warranty: | 1 Year |
---|---|---|---|
Control: | Touch Screen | PLC: | MITSUBISHI |
Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
Material: | Aluminum Alloy | Condition: | New |
Thickness: | 0.6-4.0mm | Signal: | SMEMA |
Application: | Electronic Assembly | Color: | Silver |
Control System: | PLC | OEM/ODM: | Available |
Power Consumption: | 200W | Power Supply: | AC220V |
Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
Type: | Automatic | Weight: | 220/240KG |

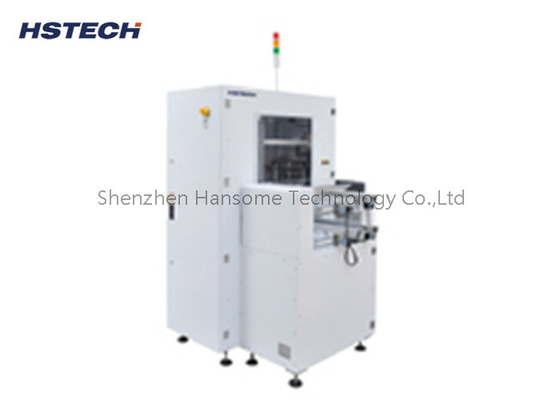

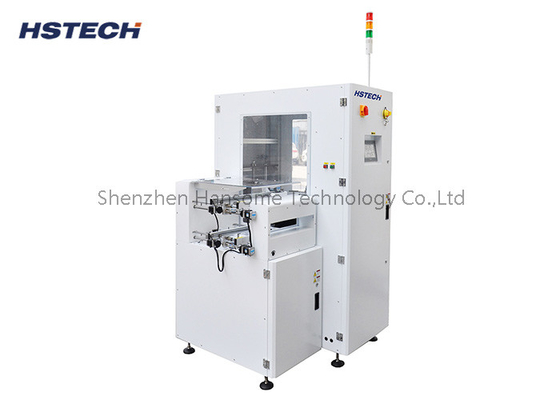

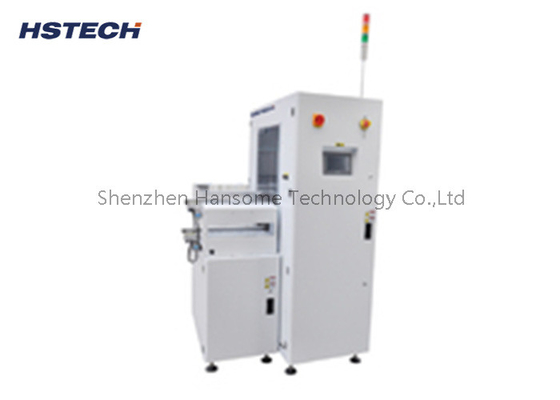

HS-GH350 Front Operation SMT Line Intelligent SMT Production Line Automatic PCB Buffer
Technical Details
Model | HS-GH350 |
Transport height | 910±20mm |
Transportation direction | L~R, or R~L |
Board cycle time | Approx 20 seconds |
Magazine change over time | Approx 30seconds |
Track fixed side | Front side |
Operation side | Front side |
PCB thickness | Min 0.6mm |
Pitch selection | 1-4(10mm pitch) |
Power supply | 220V,50/60Hz,±10% |
Power | 0.05kW |
Air pressure | 4-6Bar |
Air consumption | Max 10L/min |
Number of magazines | Upper:1 magazine, Bottom side:1 magazines |
Signal | SMEMA |
Options | 1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Specification
Model | HS-HC250S | HS-HC330M | HS-HC390L | HS-HC460XL |
Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
Machine dimension | 1250*1200*1600mm | 1460*1360*1600mm | 1610*1480*1600mm | 1610*1620*1600mm |
Weight | 170kg | 230kg | 300kg | 330kg |
Features
1. Use friendly soft touch LED membrane control panel.
2. FIFO,LIFO,Loader, Unloader,Reject mode selected.
3. Fast, smooth and precise indexing.
4. Pneumatic clamps provided for magazine alignment.
5. Pneumatic pusher’s pressure regulated.
6. Threshold’s system provided.
7. Additional magazines buffering capacity available upon request.
8. SMEMA compatible.
Application
This unit is used as a buffer after SPI and AOI buffer equipment.
