HS-IT350/500 SMEMA Compatible Automatic PCB Inverter for Double-Side Process

Name: HS-IT350/500 SMEMA Compatible Automatic PCB Inverter for Double-Side Process
Brand: HSTECH
SKU: HS-IT350
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (167 reviews)

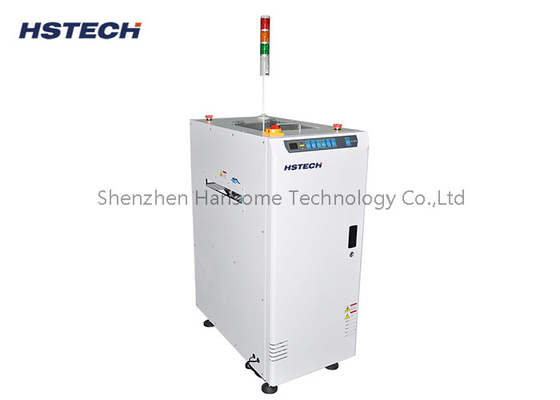

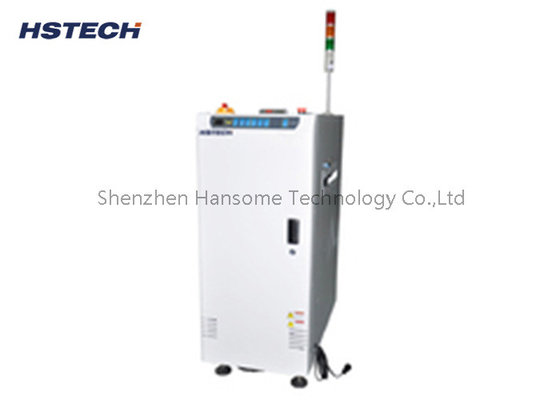

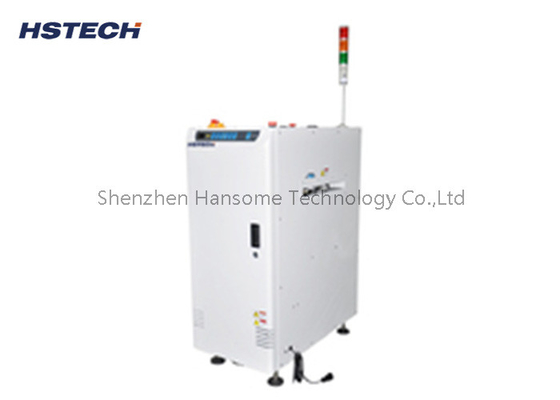

Large Image : HS-IT350/500 SMEMA Compatible Automatic PCB Inverter for Double-Side Process

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-IT350

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden package
Delivery Time:	7~9 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	PCB Flipper Inverter	Warranty:	1 Year
Control:	Touch Screen	PLC:	MITSUBISHI
Relay Brand:	Schneider	Optoelectronic Switch:	OMRON
Material:	Aluminum Alloy	Condition:	New
Thickness:	0.6-4.0mm	Signal:	SMEMA
Application:	Electronic Assembly	Color:	Silver
Control System:	PLC	OEM/ODM:	Available
Power Consumption:	200W	Power Supply:	AC220V
Air Pressure:	4-6bar	Speed:	200-300pcs/min
Type:	Automatic	Weight:	220/240KG

HS-IT350/500 SMEMA Compatible Automatic PCB Inverter for Double-Side Process

Technical Details

Function	This unit is used to invert PCBs (180degree) for double-side process
Transport height	910±20mm
Transportation direction	L~R, or R~L
Cycle time	Approx 5 seconds
Track fixed side	Front side
Power supply	AC100-230V,50/60Hz,single phase
Air pressure	4-6bar
Air consumption	Max 10L/min
PCB thickness	Min 0.6mm
Signal	SMEMA

Specification

Model	HS-IT350	HS-IT500
Efficient PCB length	*5050~450350mm*	*5050~450500mm*
Machine dimension	*5709451270mm*	*57010951270mm*
Weight	130kg	150kg

Features

1, Enclosed design with built-in torque limiter ensure high level of safety.

2, Top safe cover can be opened for each access to hardware during Maintenance.

3, Use friendly control button,optional use touch screen.

4, Smooth and precise rotation.

5, By-pass model provided.

6, Minimize the transfer gap between conveyors.

7, PCB traffic flows can be customized.

8, Smooth and parallel width adjustment(lead screw).

9, SMEMA compatible.

Machine drawing

HS-IT350/500 SMEMA Compatible Automatic PCB Inverter for Double-Side Process 0

Application

This unit is used to invert PCBs (180degree) for double-side process.
