Front-Side Operation Multi-Function SMT Production Line Automatic PCB Surface Dust Cleaner

Brand Name:	HSTECH
Model Number:	HS-DC250
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Surface Dust Cleaner

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.6-4.0mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Power Consumption:

200W

Power Supply:

AC220V

Air Pressure:

4-6bar

Speed:

200-300pcs/min

Type:

Automatic

Weight:

220/240KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Front-Side Operation Multi-Function SMT Production Line Automatic PCB Surface Dust Cleaner

Technical Details

Function	This machine used for remove dust, glass fiber, static electricity,etc on top surface of PCB before screen printing.
Transport height	900±30mm
Transportation direction	L~R, or R~L
Cycle time	Approx 8 seconds
Sticker roller qty	1reel
Adhesive paper	2 reels
Ionizer qty	2pcs
Brush	1pc
Track fixed side	Front side
Power supply	AC100-230V,50/60Hz
Air pressure	4-6bar
Air consumption	Max 10L/min
PCB thickness	0.4~5mm
Communication	SMEMA

Specification

Model	HS-DC250	HS-DC330
Efficient PCB length	5050~330250mm	5050~455330mm
Machine dimension	6508001300mm	8009501300mm
Weight	100kg	130kg

Features

1, According to the SMT production line requirements develop and design equipment.

2, PLC control system.

3, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .

4, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.

5, Equipped with the Keyence brand static climinators, completely eliminate electrostatic interference.

6, Touching clean method, cleanness above 99%.

7, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.

8, Mechanical parts draw-out design, maintenance is simple.

9, Interface display in English and Chinese, interface operation convenient and simple.

10, SMEMA signal compatible.

Machine drawing

Front-Side Operation Multi-Function SMT Production Line Automatic PCB Surface Dust Cleaner 0

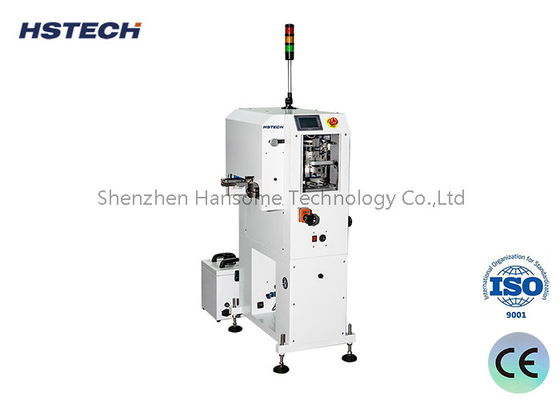

Product physical picture

Application

This machine used for remove dust, glass fiber, static electricity,etc on top surface of PCB before screen printing.
