Send Message
Home ProductsPCB Handling Equipment

Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor

Certification
China Shenzhen Hansome Technology Co., Ltd. certification
China Shenzhen Hansome Technology Co., Ltd. certification
Customer Reviews
HSTECH's equipment totally fit our requirement, the machine working stable and no errors, it help us a lot during the electronic production, thanks, we like it!

—— Bradly

The machines assemblyed and packed very well,easy installation under the particular directions, more important the working efficiency and accuracy is over expected. We are happy with these equpiments, we will try new cases for you.

—— Jason

The cleaner are working very well, thanks for the service!

—— Emma

The parts we purchased with very good quality, your stock parts item is exhaustive and the service reaction is fast, it's really help.

—— Eduardo

I'm Online Chat Now

Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor

Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor
Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor

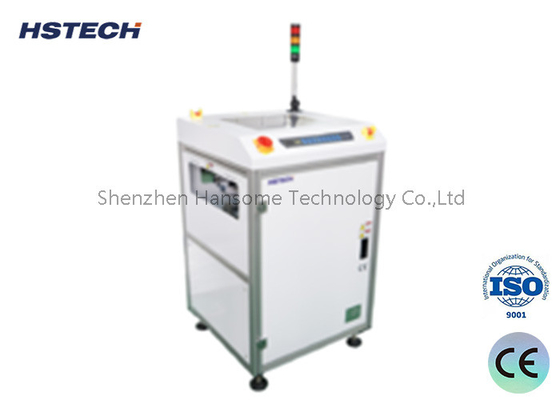

Large Image :  Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-ZJ350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: 90 Degree PCB Turn Conveyor Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Thickness: 0.6-4.0mm Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Power Supply: AC220V
Air Pressure: 4-6bar Speed: 200-300pcs/min
Type: Automatic Weight: 220/240KG



Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor



Technical Details

Function This unit is used for redirect the PCBs flow direction on production line(90degree,180degree,or 270degree)
Transport height 910±20mm
Transportation direction L~R, or R~L
Cycle time Approx 5 seconds
Track fixed side Front side
Power supply AC100-230V,50/60Hz,single phase
Air pressure 4-6bar
Air consumption Max 10L/min
PCB thickness Min 0.4mm
Signal SMEMA



Specification

Model HS-ZJ350 HS-ZJ500
Efficient PCB length 50*50~500*350mm 50*50~500*500mm
Machine dimension 700*750*1200mm 840*890*1200mm
Weight 150kg 180kg



Features

1, Enclosed design with built-in torque limiter ensure high level of safety.

2, Top safe cover can be opened for each access to hardware during Maintenance.

3, Use friendly control button.

4, Smooth and precise rotation.

5, Minimize the transfer gap between conveyors.

6, PCB traffic flows can be customized.

7, Smooth and parallel width adjustment(lead screw).

8,SMEMA compatible.



Machine drawing

Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor 0

Application

This unit is used for redirect the PCBs flow direction on production line(90degree,180degree,or 270degree)



About Packaging

Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor 1

Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor 2

Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic 90 Degree PCB Turn Conveyor 3







Contact Details
Shenzhen Hansome Technology Co., Ltd.

Contact Person: Mr. Rudi Jin

Tel: 86-755-23209382

Fax: 86-755-23209382

Send your inquiry directly to us (0 / 3000)
