| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-PYJ250 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Shuttle Conveyor | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |

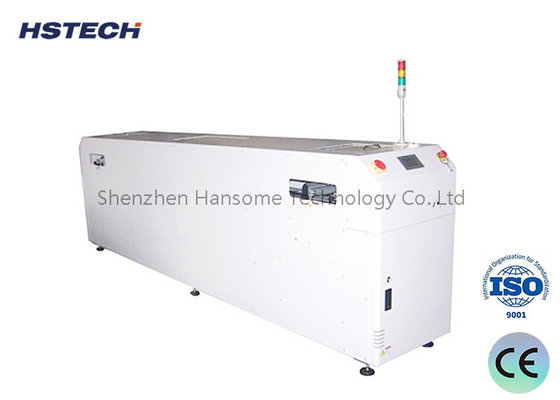

Buffering Slow Down Design PCB Board Handling Equipment Type Case PCB Shuttle Conveyor
Technical Details
| Function | This unit used to redirect PCB flow to different channels, from 2 line to 1 line, or from 1 line to 2 lines. |
| Model | HS-PYJ250 |
| Transport height | 910±20mm |
| Translation distance | Standard 2200mm(1~4th rail) or customized |
| Translation time | Customized |
| Translation method | Stepper motor+conveyor belt |
| Rail fixed | 1st and 4th rail fixed |
| Suitable PCB size | 50*50~400*250mm |
| Transfer direction | L-R, or R-L |
| PCB transfer mode | 2 in 1 out, 1 in 2 out, or 2 in 2 out. |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Machine dimension | 600*2600*1200mm |
| Signal | SMEMA |
Features
1, Module safety enclosed design.
2, Use stepper motor.
3, Stable,balanced, and precision moving.
4, Smooth and parallel width adjustment.
5, PCB transporting direction follow customer requirement.
6, Touch screen control panel.
8,SMEMA compatible.
Machine drawing
Product physical picture
Application
This unit used to redirect PCB flow to different channels, from 2 line to 1 line, or from 1 line to 2 lines.
