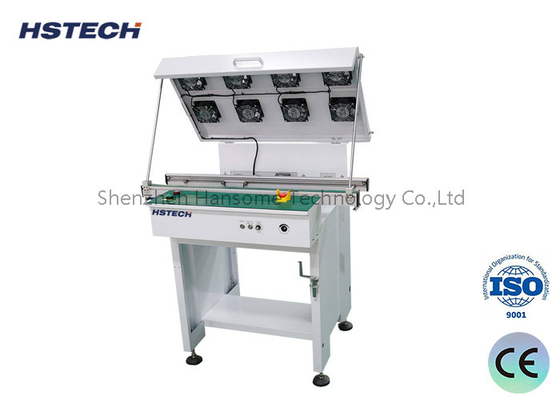

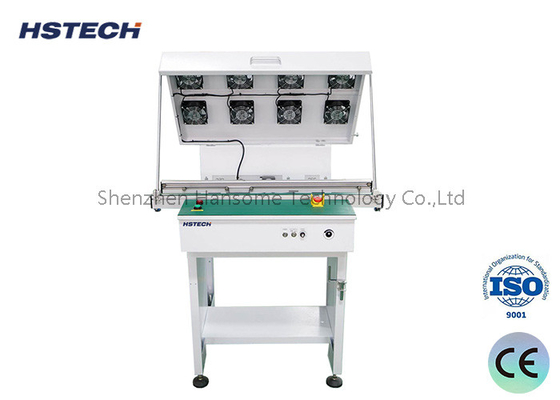

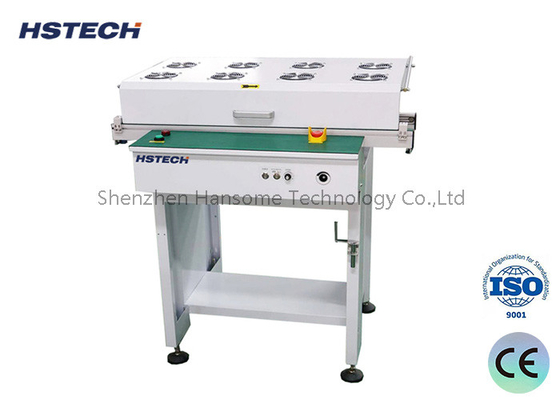

Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt

Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt

  • Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt
  • Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt
  • Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt
Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Link Conveyor With Towerlight Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Thickness: 0.6-4.0mm Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Power Supply: AC220V
Air Pressure: 4-6bar Speed: 200-300pcs/min
Type: Automatic Weight: 220/240KG



Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt



Technical Details

Function Used for linking the up-stream and down stream machines between SMT production line
Transport height 910±30mm
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side, or customized
PCB width 50*50~530*460mm
Conveyor length options 0.5m/0.6m/1.0m/1.5m or customization
Speed adjust method Knob
Width adjustment Hand crank(optional auto adjust)
Power supply AC110/220V,50/60Hz,±10%
Options Light, Fan, Inspection function,Cover, Automatic width adjustment, dual rail,etc.
Signal SMEMA



Features

1. Use heat dissipation cooling fans.

2, Programmable Logic Controller.

3.Hand crank width adjustment

4, Economic space.

5.Use stainless steel screw,smooth and parallel width adjustment

6.Left to right travel,or right to left, front rail fixed

7.ESD working table.

8, Height adjustable and stable feet cup location.

9, Speed control.

10.SMEMA compatible.

Application



Used for linking the up-stream and down stream machines between SMT production line



About Packaging

Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt 0

Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt 1

Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt 2
