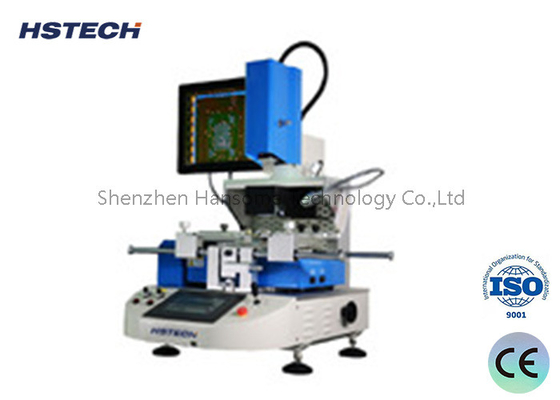

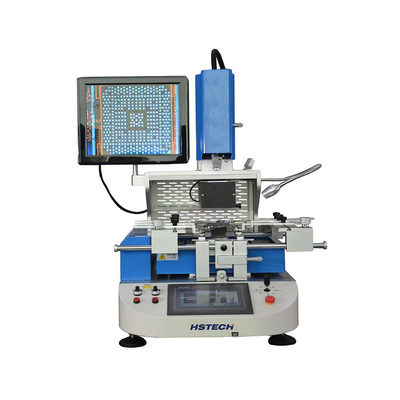

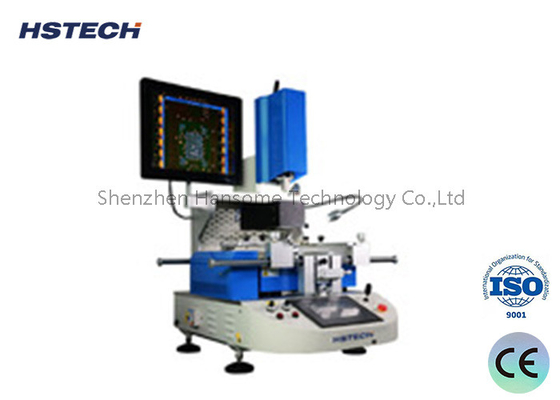

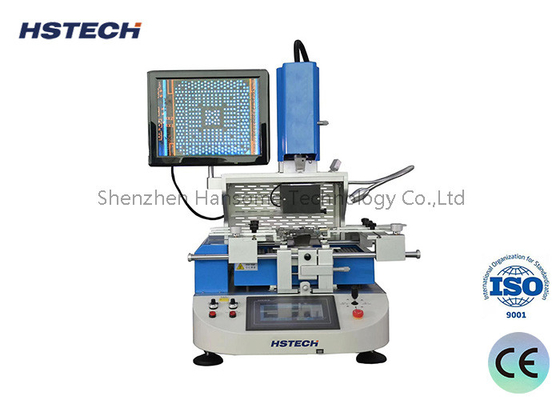

Automatic & Manual Operation System Laser Position MCGS Touch Screen Control BGA Rework Station

Automatic & Manual Operation System Laser Position MCGS Touch Screen Control BGA Rework Station
Automatic & Manual Operation System Laser Position MCGS Touch Screen Control BGA Rework Station Automatic & Manual Operation System Laser Position MCGS Touch Screen Control BGA Rework Station Automatic & Manual Operation System Laser Position MCGS Touch Screen Control BGA Rework Station Automatic & Manual Operation System Laser Position MCGS Touch Screen Control BGA Rework Station Automatic & Manual Operation System Laser Position MCGS Touch Screen Control BGA Rework Station Automatic & Manual Operation System Laser Position MCGS Touch Screen Control BGA Rework Station

Large Image :  Automatic & Manual Operation System Laser Position MCGS Touch Screen Control BGA Rework Station

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-620
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: BGA Rework Station Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Thickness: 0.3 - 5mm Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Total Power: 2600W Power Supply: AC220V
Air Pressure: 4-6bar Mounting Accuracy: ±0.01mm
Type: Automatic Weight: 30KG



Automatic & Manual Operation System Laser Position MCGS Touch Screen Control BGA Rework Station



​Specification

BGA Rework Station Model:HS-620
Power Supply AC 220V±10% 50/60Hz
Total power 3500W
Heater power Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 2700W
Electric material Driving motor+PLC smart temp.controller+color touch screen
Temperature control independent temp.controller,the precision can reach ±1℃
Temperature Interface 1pcs
Locating way V shape slot,PCB support jigs can adjust,laser light do fast centering and position
Overall dimension L650mm*W630mm*H850mm
PCB size Max 450mm*390mm Min 10mm*10mm
BGA size Max 80mm*80mm Min 1mm*1mm
Weight of machine 60KG
Usage Repair chips / phone motherboard etc



Features

1.Automatic&Manual operation system.

2. 5 million CCD camera optical alignment system mount precision:±0.01mm.

3.MCGS touch screen control.

4.Laser position.

5.Repair success rate 99.99%.
