| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-520 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | BGA Rework Station | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.3 - 5mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Total Power: | 2600W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Mounting Accuracy: | ±0.01mm |
| Type: | Automatic | Weight: | 30KG |

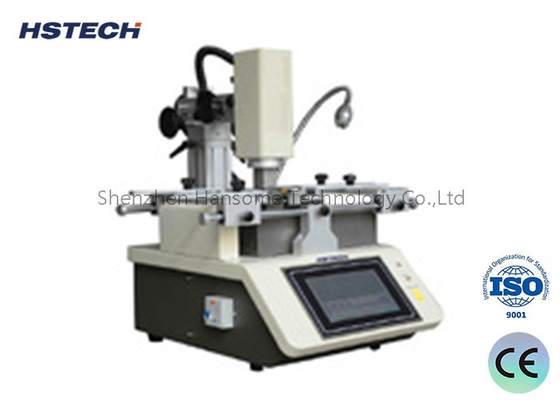

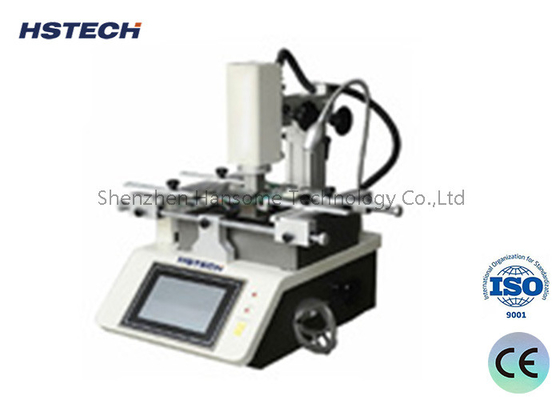

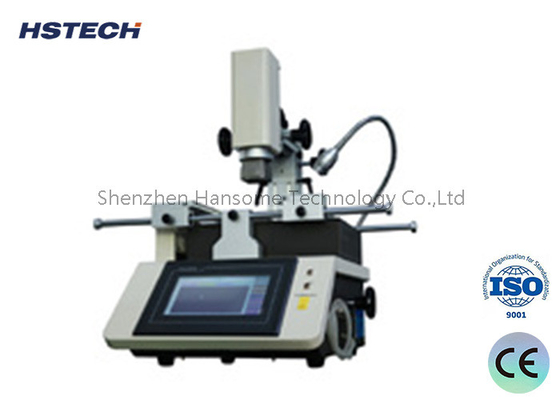

Industrial Touch Screen Independent 3 Heating Zones Manual BGA Rework Station With CE Certification
Specification
| Manual BGA Rework Station | Model:HS-520 |
| Power Supply | AC 220V±10% 50/60Hz |
| Total power | 3800W |
| Overall dimension | L460mm*W480mm*H500mm |
| PCB size | Max 300mm*280mm Min 10mm*10mm |
| BGA size | Max 60mm*60mm Min 1mm*1mm |
| PCB thickness | 0.3-5mm |
| Weight of machine | 20KG |
| Warranty | 3 years (1st year is free) |
| Usage Repair | chips / phone motherboard etc |
Features
1.Repair Success Rate:More Than 99%
2.Using The Industrial Touch Screen
3.Independent 3 Heating Zones, Hot Air Heating/ Infrared Preheat. (temperature accuracy ± 2℃)
4.With CE Certification
