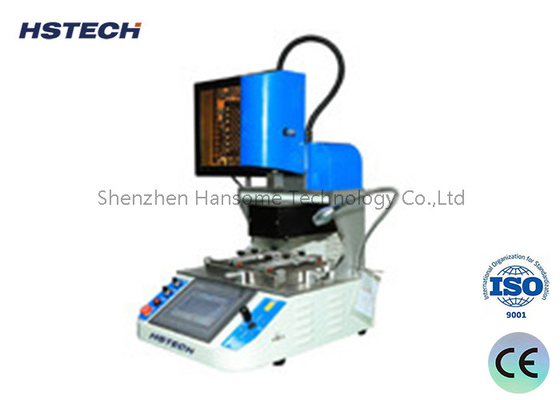

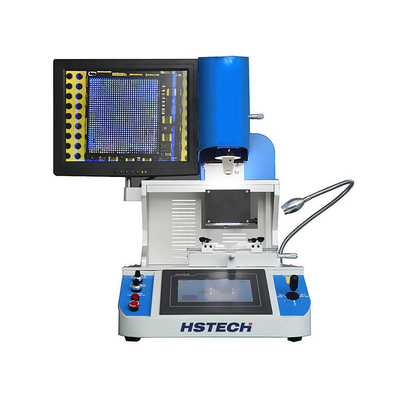

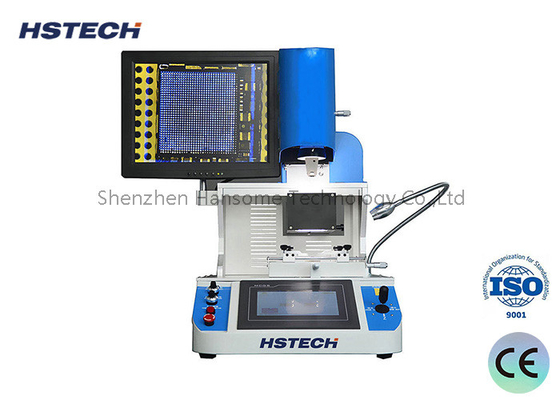

5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station

5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station

  • 5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station
  • 5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station
  • 5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station
  • 5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station
5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-700
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Mobile Phone BGA Rework Station Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Thickness: 0.3 - 5mm Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Total Power: 2600W Power Supply: AC220V
Air Pressure: 4-6bar Mounting Accuracy: ±0.01mm
Type: Automatic Weight: 30KG



5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station



​Specification

Mobile Phone BGA Rework Station Model:HS-700
Power Supply AC 100V / 220V±10% 50/60Hz
Total power 2600W
Heater power Top heater 1200W(Max), bottom heater 1200W(Max)
Electric material Driving motor + smart temp. controller + color touch screen
Temperature control high precision K-sensor+ closed loop control + independent temp.controller (the precision can reach ±1℃)
Sensor 1pcs
Locating way V shape PCB support + external universal fixture + laser light for centering and positioning
Overall dimension L450mm*W470mm*H670mm
PCB size Max 140mm*160mm Min 5mm*5mm
BGA size Max 50mm*50mm Min 1mm*1mm
Applicable PCB thickness 0.3 - 5mm
Mounting accuracy ±0.01mm
Weight of machine 30KG
Mount chip weight 150g
Working modes Five: Semi-auto/Manual/Remove/Mount/Weld
Usage Repair chips / phone motherboard etc



Features

1. 5 work modes

2. 15''HD LCD monitor

3. 7''HD color touch screen

4. stepping motor

5. CCD color optical alignment system

6.Temperature accuracy within ±1℃

7.Mounting precision within ±0.01mm

8.Repair success rate: 99% +

9. Independent research and development of single-chip control





About Packaging

5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station 0

5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station 1

5 Work Modes Stepping Motor CCD Color Optical Alignment System Mobile Phone BGA Rework Station 2
