| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Pneumatic SMT Stencil Cleaner | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Signal: | SMEMA | Application: | Electronic Assembly |
| Color: | Silver | Control System: | PLC |
| OEM/ODM: | Available | Power Consumption: | 200W |
| Power Supply: | AC220V | Air Pressure: | 0.5-0.6MPa |
| Speed: | 200-300pcs/min | Type: | Automatic |

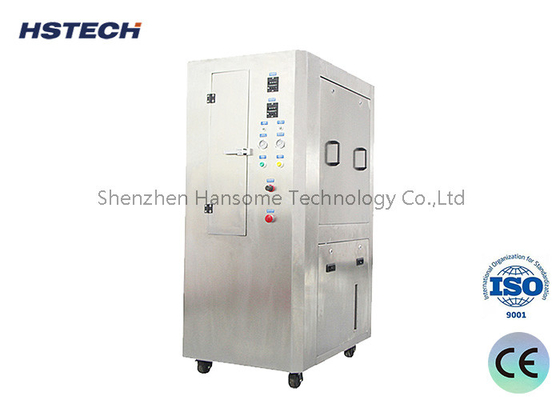

Side Air Dying Design Good Reliability Stainless Steel CabinetPneumatic SMT Stencil Cleaner
This machine serve for the electronic manufacturing, it used to clean stencil,screen print,mesh, copper screen,micro screen and crystal disk,also the misprinted circuit board ,fixture, etc.
This equipment complete pneumatic operating without fire risk, no electricity, very safe. Ergonomically in design. Cleaning and drying process can be easily control with one-button operation. The whole cleaning and drying process powered by air compressor, cleaning solvent recycle using, low consumption.
Technical Details
| Cleaning stencil size | L740 × W740 × H40(mm) or customized |
| Machine dimension | L1000*W700*H1730(mm) |
| Max solvent capacity | 40L |
| Best solvent usage | 30L |
| Cleaning method | 360°rotary spray cleaning and high pressure air injection |
| Cleaning time | 2-4min |
| Drying time | 2-5min |
| Compressor | 0.4～0.6(Mpa) |
| Air consumption | 400～600( L/Min) |
| Outlet size | Φ125×H25(mm) |
| Filter system-level one | 10㎛ (Filter impurities and labels) |
| Filter system-level two | 5㎛ (Filter solder paste and rosin particle) |
| Filter system-level three | 1㎛ (Filter solder paste and rosin particle) |
| Machine weight | 200Kg |

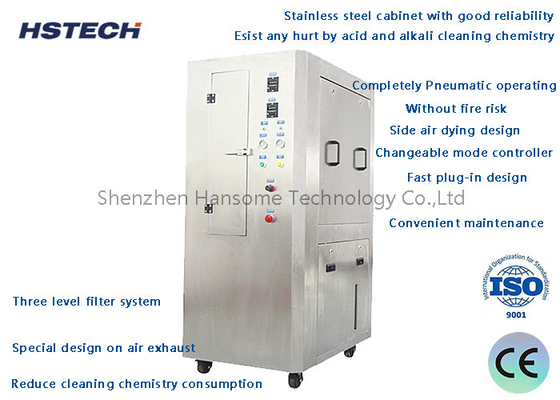

Features
Used for cleaning solder paste, red gule,flux,etc
Stainless steel cabinet with good reliability and can resist any hurt by acid and alkali cleaning chemistry.
Completely Pneumatic operating without fire risk, no electricity ,safe.
Side air dying design.
Humanized design, one button operation and automatic liquid feeding and draining system, easy and convenient.
Changeable mode controller and fast plug-in design, convenient maintenance.
Three level filter system, also with special design on air exhaust can reduce cleaning chemistry consumption.
High precision isobaric double side rotary cleaning nozzle, high cleanliness, steel mesh tension stable.
Using globe best quality parts, make sure the quality,stability, and long life-span.
Cleaning object
Stencil , metal mesh,screen print mesh,copper screen,micro screen and Crystal disk
Application
 |
|
|
|
| Avionics | High speed rail | Medical Electronics | Smart phone |
|
|
|
|
| Automotive electronics | New energy | Communication base | High-end power |
