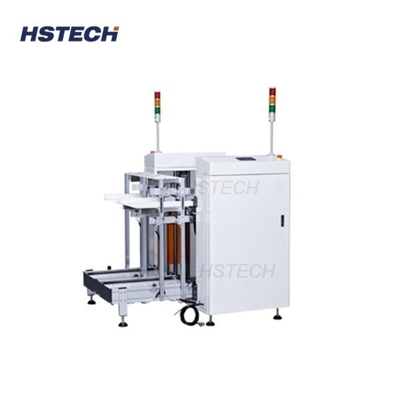

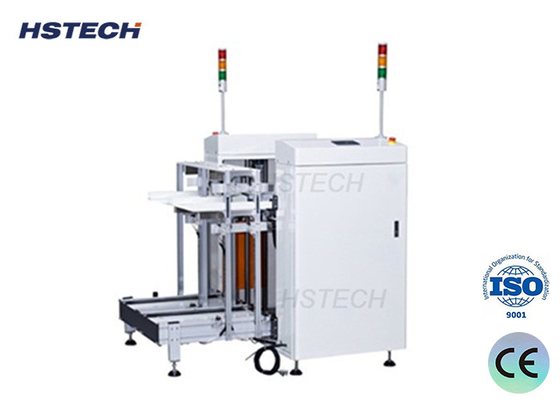

PLC Control System 6 Magazines Loading Capability Double Track Unloader

PLC Control System 6 Magazines Loading Capability Double Track Unloader

  • PLC Control System 6 Magazines Loading Capability Double Track Unloader
  • PLC Control System 6 Magazines Loading Capability Double Track Unloader
  • PLC Control System 6 Magazines Loading Capability Double Track Unloader
PLC Control System 6 Magazines Loading Capability Double Track Unloader
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Double Track Unloader Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Signal: SMEMA Application: Electronic Assembly
Color: Silver Control System: PLC
OEM/ODM: Available Power Consumption: 200W
Type: Automatic

PLC Control System 6 Magazines Loading Capability Double Track Unloader

Main Function
This unit is used to collect PCBs into two magazines from dual track equipment at the same time.

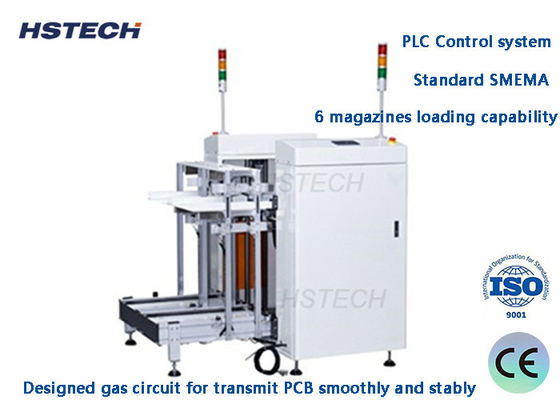

Discription
a, PLC Control system

b, Dual tracks and dual lift platforms design

c, 6 magazines loading capability

d, Designed gas circuit for transmit PCB smoothly and stably

e, Standard SMEMA

Specs

Type DU-250 DU-300 DU-400 DU-500
Power Supply AC110V/AC220V 50H60Hz AC110V/AC220V 50H60Hz AC110V/AC220V 50H60Hz AC110V/AC220V 50H60Hz
Air Supply 5kgf/C M2 5kgf/C M2 5kgf/C M2 5kgf/C M2
PCB Size(mm) 350*50~250 445*50~330 530*50~390 535*50~460
PCB Direction left to right or right to left left to right or right to left left to right or right to left left to right or right to left
Magazine Size(mm) 335*320*565 460*400*565 535*460*565 535*530*565
Step pitches(mm) 10,20,30,40 10,20,30,40 10,20,30,40 10,20,30,40
Transport Height(mm) 900±20 900±20 900±20 900±20
Transmission Speed 6m/S 10m/S 10m/S 10m/S
Main Motor Power 440W 440W 440W 440W
Machine Size(mm) 1510*1530*1250 1910*1630*1250 2160*1760*1250 2160*1900*1250
Weight(kgs) 320 350 380 410




About Packaging
PLC Control System 6 Magazines Loading Capability Double Track Unloader 0
PLC Control System 6 Magazines Loading Capability Double Track Unloader 1
PLC Control System 6 Magazines Loading Capability Double Track Unloader 2
