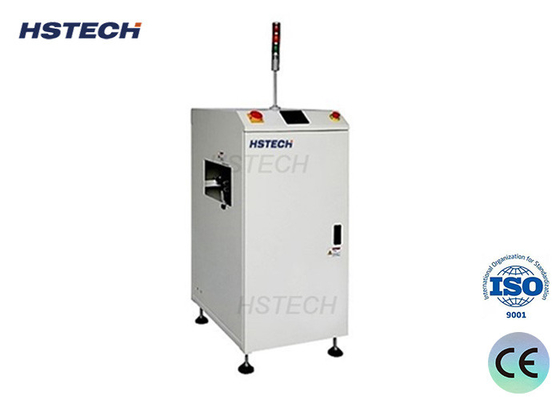

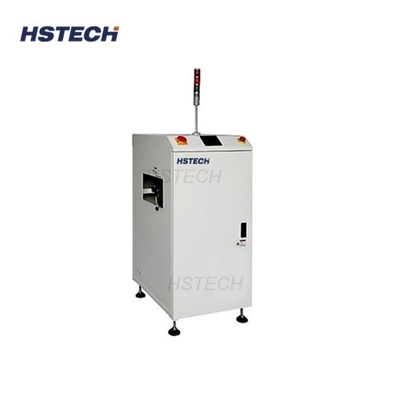

PLC Control System Pass Through Function Balanced Accurate Flip Mode Automatic Inverting Machine

PLC Control System Pass Through Function Balanced Accurate Flip Mode Automatic Inverting Machine

  • PLC Control System Pass Through Function  Balanced Accurate Flip Mode Automatic Inverting Machine
  • PLC Control System Pass Through Function  Balanced Accurate Flip Mode Automatic Inverting Machine
  • PLC Control System Pass Through Function  Balanced Accurate Flip Mode Automatic Inverting Machine
PLC Control System Pass Through Function  Balanced Accurate Flip Mode Automatic Inverting Machine
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Automatic Inverting Machine Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Signal: SMEMA Application: Electronic Assembly
Color: Silver Control System: PLC
OEM/ODM: Available Power Consumption: 200W
Type: Automatic

PLC Control System Pass Through Function Balanced Accurate Flip Mode Automatic Inverting Machine​


Main Function
This unit is used for inverting pcb for double side production

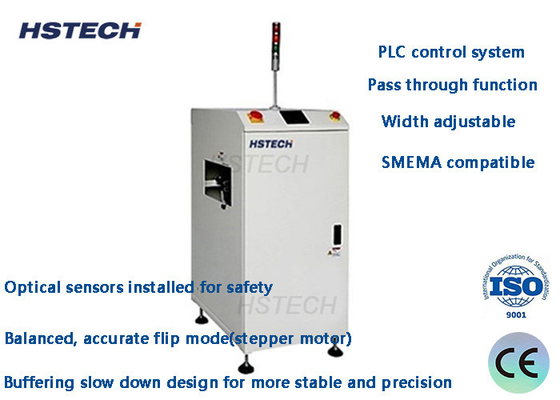

Discription
a, PLC control system
b, Pass through function
c, Balanced, accurate flip mode(stepper motor)
d, Optical sensors installed for safety
e, Buffering slow down design for more stable and precision
f, Width adjustable
g, SMEMA compatible



Parameter

Model HS-460IV
PCB dimension (50*50)~(500*460)
Cycle time Around 20 seconds
Power supply AC100-230V
Air pressure 4-6bar, max 10L/min
Transmission height 920±20mm
Transport direction left to right or right to left
PCB thickness min 0.4mm
Machine dimension 600*900*1200
Weight 140kg




About Packaging
PLC Control System Pass Through Function  Balanced Accurate Flip Mode Automatic Inverting Machine 0
PLC Control System Pass Through Function  Balanced Accurate Flip Mode Automatic Inverting Machine 1
PLC Control System Pass Through Function  Balanced Accurate Flip Mode Automatic Inverting Machine 2
