Dual-track NG OK Unloader Standard frame-type pcb automatic board unloader

Dual-track NG OK Unloader Standard frame-type pcb automatic board unloader

  • Dual-track NG OK Unloader Standard frame-type pcb automatic board unloader
  • Dual-track NG OK Unloader Standard frame-type pcb automatic board unloader
  • Dual-track NG OK Unloader Standard frame-type pcb automatic board unloader
Dual-track NG OK Unloader Standard frame-type pcb automatic board unloader
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-250DULD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Dual Rail PCB Unloader Color: White
PLC: MITSUBISHI Relay: Schneider
Optoelectric Switch: Omron Driver Brand: Meanwell

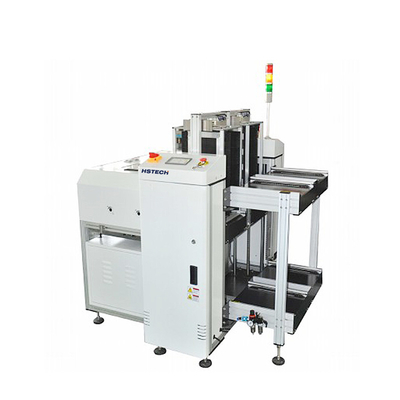

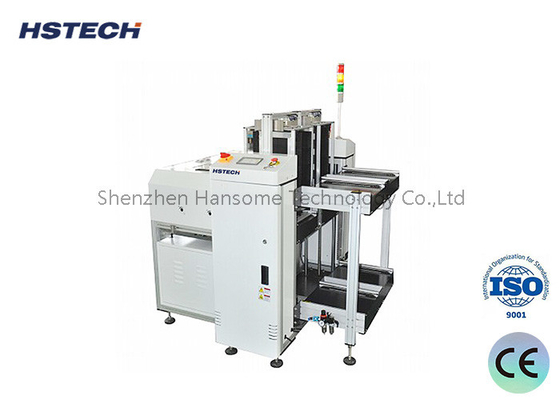

Dual-track NGOK Unloader Standard frame-type pcb automatic board unloader.



This machine is dual rail operation, used to collect the PCBs to the magazines.



Specification



Model HS-250DULD
PCB dimension (50*50)~(350*250)mm
Magazine size 355*320*565mm
PCB loading time Around 6s
Magazine replace time 30s
Power supply AC100-230V,single Phase,max300A
Air supply 4-6 bar, Max 10L/min
Transport height 900±20mm
Transport direction L to R,or R to L9(optional)
PCB thickness Min 0.4mm
Magazine qty top 1pc, down 1 pc, or customized
Step pitch options 1-4(10mm pitch)
Machine dimension 1460*1500*1200mm
Weight Approx 210kg



Features



1, True color touch screen control

2, Mitsubishi PLC

3, Magazine capacity: top 1, bottom 1, or customized

4, Selective pitch: 10mm,20mm,30mm,40mm

5, PCB transport direction: L - R, or R - L,optional

6, Manual/Automatic run mode selection

7, Front rail fixed or rear rail fixed,optional

8, Standard height for SMT application(920±20mm)

9, Tower light display

10, SMEMA signal
