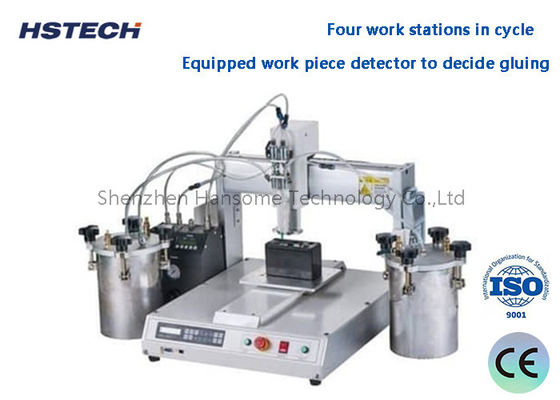

Four Work Stations In Cycle Equipped Work Piece Detector LED Bulb Glue Dispenser

Four Work Stations In Cycle Equipped Work Piece Detector LED Bulb Glue Dispenser

  • Four Work Stations In Cycle Equipped Work Piece Detector  LED Bulb Glue Dispenser
  • Four Work Stations In Cycle Equipped Work Piece Detector  LED Bulb Glue Dispenser
Four Work Stations In Cycle Equipped Work Piece Detector  LED Bulb Glue Dispenser
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-D441
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: LED Bulb Glue Dispenser Warranty: 1 Year
Control: Touch Screen Relay Brand: Schneider
Optoelectronic Switch: OMRON Material: Aluminum Alloy
Condition: New Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Type: Automatic



Four Work Stations In Cycle Equipped Work Piece Detector LED Bulb Glue Dispenser



Machine feature


1, Four work stations in cycle, the designed capacity is 1000~1500pcs/h.



2, Equipped work piece detector to decide gluing or skip.



3, Gluing track can be set as full circle, single point or segmented arc etc.



4, Working mode can be four-station or two-station.



5, It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.




Specification
Model HS-BD4
MCU Industrial PLC
Programming Text Demonstration Programmer
Drive mode Precise Stepping Motor
Max Dispensing Diameter 160mm(two station),110mm(four station)
Motor Speed 0 ~ 300 RPM
Positioning Accuracy ±0.1mm
Z-axis Adjust Range 250mm
Z-axis Working Travel 50mm
Dimension (L*W*H) 420mm*532mm*532mm
Weight 35Kg
Working Power AC220V/50~60Hz/200W
Working Air Pressure 0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity Temperature: 0~40℃,Humidity: 20~90%





Application

This LED bulb glue dispensing machine to apply glue on the base of the LED bulb or LED Par light, to connect with the housing of the lamp.

This Four-station round glue dispensing machine can be used for this application. Four stations are distributed by 90 degree on the revolution disc. Revolution motor rotates 90 degree each time to bring the work-piece to the gluing nozzle. Auto-rotation motor drives work-piece rotating in average speed to achieve evenly glue coating.

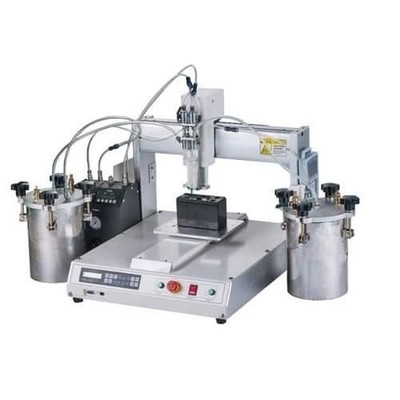

Four Work Stations In Cycle Equipped Work Piece Detector  LED Bulb Glue Dispenser 0



Text Screen PLC Glue Dispensing Machine 4 Rotary Stations 0



About Packaging
Four Work Stations In Cycle Equipped Work Piece Detector  LED Bulb Glue Dispenser 2
Four Work Stations In Cycle Equipped Work Piece Detector  LED Bulb Glue Dispenser 3
Four Work Stations In Cycle Equipped Work Piece Detector  LED Bulb Glue Dispenser 4
