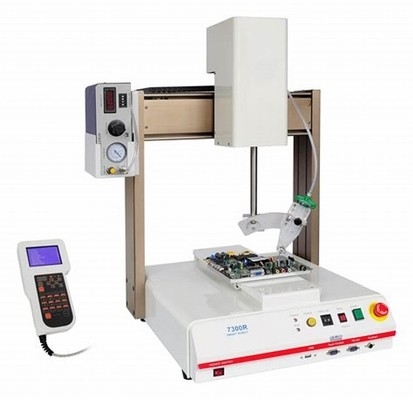

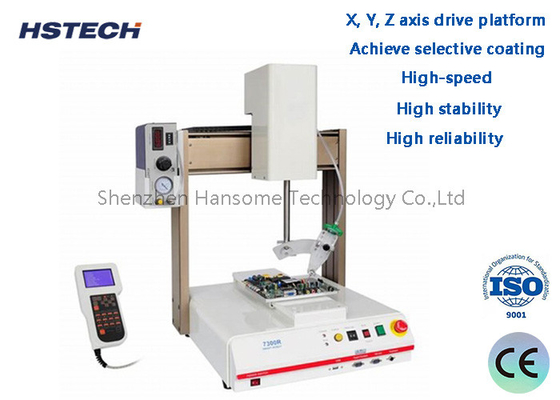

X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine

X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine
X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine

Large Image :  X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-CC300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: 3Axis Selective Coating Machine Warranty: 1 Year
Control: Touch Screen Relay Brand: Schneider
Optoelectronic Switch: OMRON Material: Aluminum Alloy
Condition: New Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Type: Automatic



X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine



Machine feature


1. X, Y, Z axis drive platform adopts precision ball screw with Fuji servo motor.



2. Achieve selective coating for various kinds of PCB.



3. Straight line, circle, arc coating and dispensing.



4. Can effectively and evenly coat edge of the components, eliminate the spray shadow effect.



5. Accuracy: ±0.02mm.



6. With high-speed, high reliability, high stability of the transmission and control system.



7. 2 valves can switch spray and coating action automatically, to achieve high-density PCB coating process.



8. With smart automatic width adjustment function (automatically adjust after inputting the board width).




Specification




Product name Selective conformal coating machine
Model HS-CC300
Transmission height 920±20mm
Conveyor width 50-450mm/or customized
Transmission  L to R, or R to L
Component height up and down max 100mm
Size of PCB board edge ≥5mm
Transport speed 0-12000mm/min
3 Axis drive speed 800mm/s
Repeat accuracy ±0.02mm
Storage programs up to 1000
Power supply AC220/110V
Air pressure 4-kgf/cm2
Glue tank 10L,manual stirring
Control mode Industrial PC+Motion control card
Linear guide adjustment Intelligent adjust
Programming mode Manual teaching
Communication port SMEMA
Lighting source Self-equipped lighting source
Detection lighting source Self-equipped
Software Windows+coating software
Driving Motor Stepper motor(2pcs)
3 axis driving mode Servo motor+screw driver module+Electric Cylinder
Number of rubber valves 1 spray valve+ 1 dispensing valve
Spray width 3-20mm
Spraying method Automatic
Total power 2.6kW
Machine body Stainless steel
Machine weight 600kg
Machine dimension 1060x1200x1700mm





X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine 0X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine 1



About Packaging
X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine 2
X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine 3
X, Y, Z Axis Drive Platform High-Speed High Reliability High Stability 3Axis Selective Coating Machine 4
