Stainless Steel Side Guide PCB Reject Conveyor With SMEMA Compatible Laser Carved

Brand Name:	HSTECH
Model Number:	HS-CVN350
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union,
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

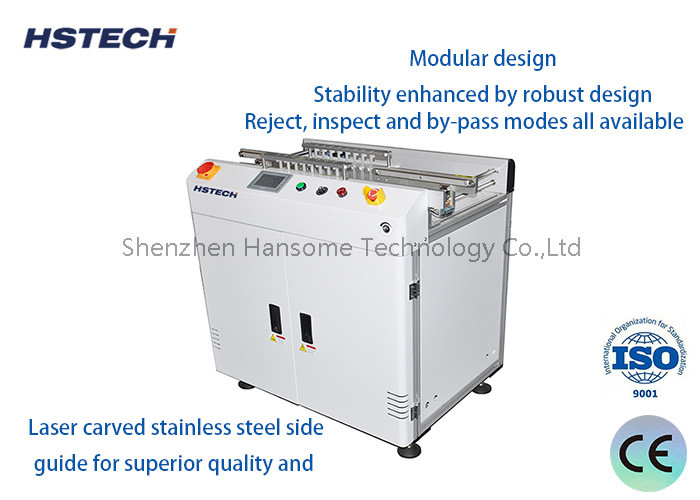

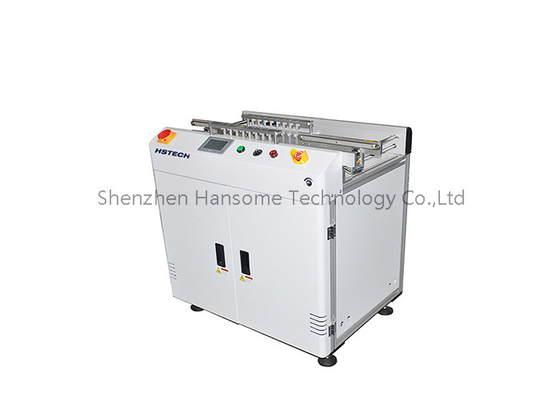

PCB Reject Conveyor Compatible Laser Carved Stainless Steel Side Guide With SMEMA

Introduce

This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow.

Features

Reject, inspect and by-pass modes all available.
Modular design.
Stability enhanced by robust design.
Laser carved stainless steel side guide for superior quality and durability.
Ergonomic design arm rest.
Smooth and parallel width adjustment(lead screw).
Different lengths available upon request.
Variable speed control.
SMEMA compatible.

Specification

Model	HS-CVN350	HS-CVN460
Efficient PCB length	5050~450350mm	5050~550460mm
Machine dimension	1000690930mm	1000800930mm
Weight	70kg	90kg

Transport height	910±20mm
Transportation direction	L~R, or R~L(optional)
Transporting speed	0.5~20 m/min or specify
Power supply	AC100-230V,50/60Hz,single phase
Power consumption	100VA max
Air pressure	4-6bar
Air consumption	Max 10L/min
Communication	SMEMA
