High Positioning UV Laser Marking Machine Accuracy Energy Consumption With 500 Watts

Brand Name:	HSTECH
Model Number:	HS-UV3W
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

UV Laser Marking Machine

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Thickness:

0.3 - 5mm

Application:

Electronic Assembly

OEM/ODM:

Available

Packaging Details:

Wooden package

Supply Ability:

500 pcs per month

Highlight:

High Positioning UV Laser Marking Machine

500 Watts UV Laser Marking Machine

Product Description

High Positioning UV Laser Marking Machine Accuracy Energy Consumption With 500 Watts

Introduction

UV Laser Marking Machine is an advanced device that uses ultraviolet laser for high-precision marking. It is suitable for industrial scenarios that require heat-sensitive materials or ultra-fine marking.

Application:

Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.

Features:

1, 3,5W UV laser output power.

2, Little power consumption, energy consumption is 500 watts.

3. Using high-speed digital galvanometer, it is 2-4 times faster than normal models.

4. High marking accuracy at ±0.003MM, and the marking content coordinates can be fine-tuned.

5. The equipment has stable performance, high positioning accuracy, and can work continuously for 24 hours.

6. The equipment marking software can support AI, PLT, CAD (DXF), CDR, and other formats of vector graphics, and can be imported indirectly or directly.

7. Simple and the marking software can still be upgraded for free after guarantee.

8. Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.

Specification:

Model	HS-UV3W
Output power	3W
Laser type	3W UV laser unit
Marking area	150*150mm(Optional)
Laser point diameter	<0.01mm
Laser output power	0~100% adjustable
Working frequency range	5~100KHz
Power stability	<±1%rms
Laser wave length	355nm
Marking type	Static marking/Dynamic marking
Marking speed	≤7000m/s
Min character	0.15mm
Repeat accuracy	±0.003mm
Laser unit	Chinese brand/Overseas brand(optional)
Cooling type	Air cooling
Power supply	AC220V,60Hz,15A
Software	Professional SW
Laser lifespan	20000Hrs
Machine size	900mm680mm1500
Machine weight	120kg

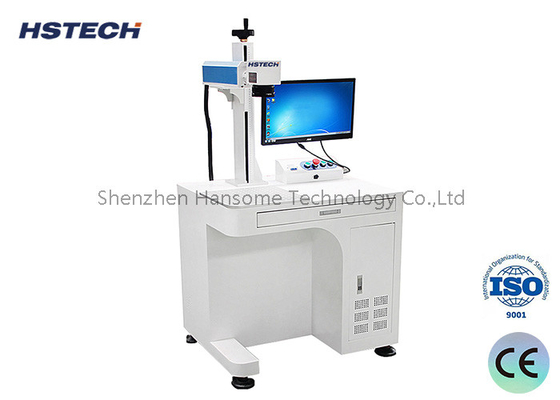

High Positioning UV Laser Marking Machine Accuracy Energy Consumption With 500 Watts 0

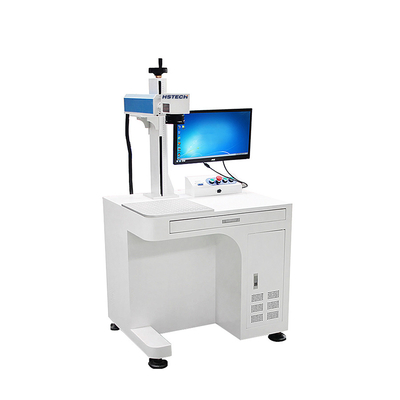

High Positioning UV Laser Marking Machine Accuracy Energy Consumption With 500 Watts 1

High Positioning UV Laser Marking Machine Accuracy Energy Consumption With 500 Watts 2
