Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE |
Model Number: | HS-800 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package |
Delivery Time: | 7~9 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets per month |
Product Name: | SMT Nozzle Cleaner | Voltage: | 1P2W, AC100V/220V, 50/60Hz |
---|---|---|---|
Machine Body: | 304 Stainless Steel | Cleaning Method: | High Pressure Spraying Cleaning |
Control Panel: | Touch Screen(English) | Machine Size: | 500*440*530mm |

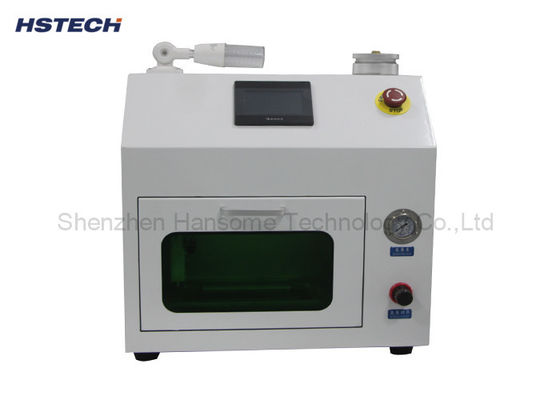

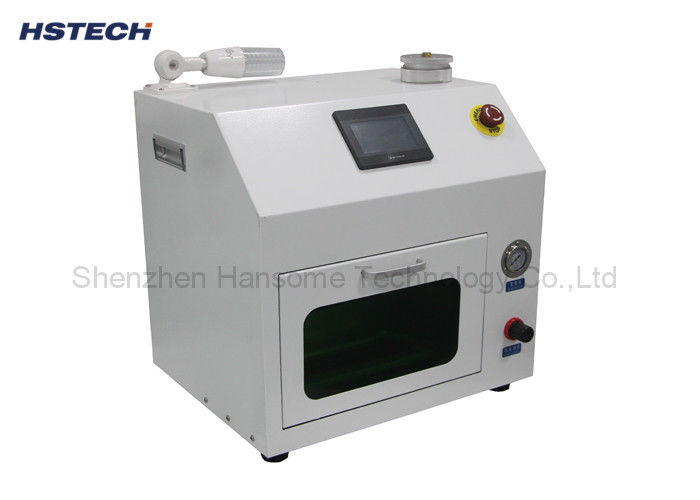

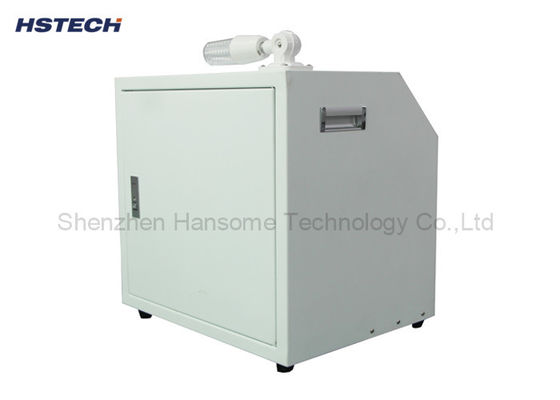

High Pressure Spraying Cleaning Touch Screen SMT Nozzle Cleaner
Introduction:
HS-800 nozzle cleaning machine can automatically complete the cleaning and drying process, it adopts multiple spraying nozzles spraying cleaning method, uses fluid mechanics to shred water, produces very strong water mist, forms powerful kinetic energy at the speed of sound and sprays on the nozzle, forming a continuous shape above the nozzle, clean the dirty on the surface and inside of the nozzles, it mainly used for cleaning small components, such as 0603,0402,0201,01005 and high precision nozzles.
Product Features:
1, Elegant appearance, high precision 304 stainless steel machine body.
Specification:
Model | HS-800 |
Voltage | Single phase, AC110-220V, 50H60Hz |
Air pressure | 0.5~0.6Mpa |
Air source | Pure compressor air |
Control mode | PLC+Touch Screen |
Jet pressure | ≤0.4MPa |
Air wastage | Under 280NL/min |
Water source | D.I water |
Water storage | 800cc |
Water consumption | 300cc/hrs |
Admission pipe/Drainpipe | φ8/φ6 |
Nozzle tray | Default 30 nozzles |
Nozzle size | 01005, 0201-2512inch |
Noise | 35-60dB |
Machine size
Nozzle Tray
