| Product Name: | PCB Loader | Other Name: | SMT Magazine Loader |
|---|---|---|---|
| Power Supply: | AC110V/220V,50/60Hz | Air Pressure: | 4-6bar |
| PCB Thickness: | Min 0.4mm | Pitch Selection: | 10-40mm |
| Conveyor Speed: | 0.5-20M/min Or Customized | Communication: | SMEMA |

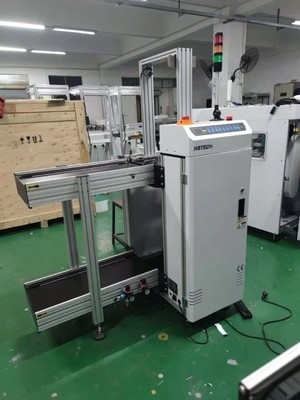

Copy Nutek LED Button Control SMT Line Magazine Loader PCB Handling Machine
Application

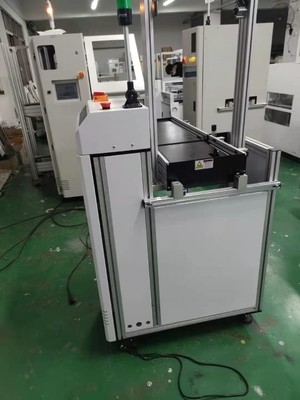

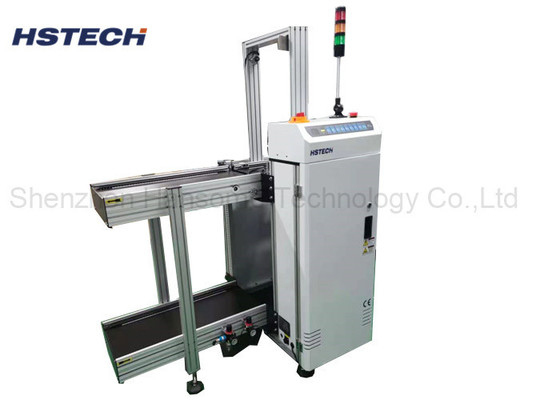

This machine is a PCB loading machine, used for transporting the PCB board from magazine racks to SMT production line.
Features

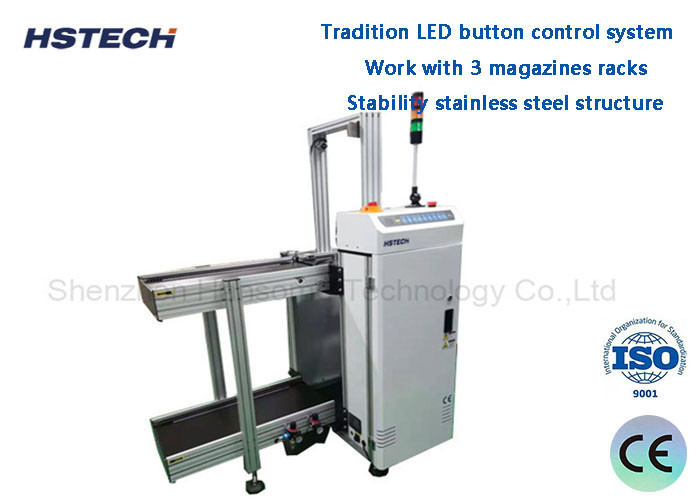

1, Tradition LED button control system.
2, Work with 3 magazines racks.
3, Stability stainless steel structure.
4, Smooth and parallel width adjustment.
5, 3 color LED light display.
6, Top and bottom pneumatic clamps to secure magazine rack.
7, No PCB breakage guaranty during loading &unloading.
8, SMEMA compatible.
9, CE listed, suitable for Europe market.
Specification
| Model | HS-LD250 |
| Product name | PCB Loader |
| Transport height | 920±20mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Model selection
| Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 180kg | 220kg | 260kg |
,,
