| Product Name: | PCB Loader With Dust Protective Cover | Other Name: | SMT Line PCB Loading Machine |
|---|---|---|---|
| Power Supply: | AC110V/220V,50/60Hz | Air Pressure: | 4-6 Bar |
| PCB Thickness: | Min 0.4mm | Pitch Selection: | 10-40mm |
| Conveyor Speed: | 0.5-20M/min Or Customized | Communication: | SMEMA |

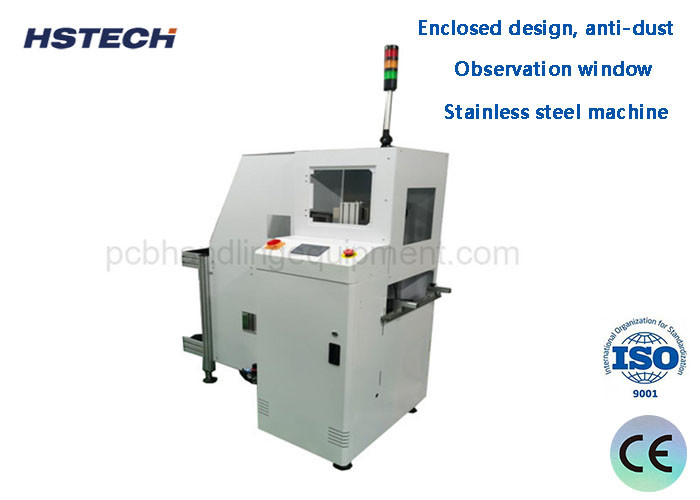

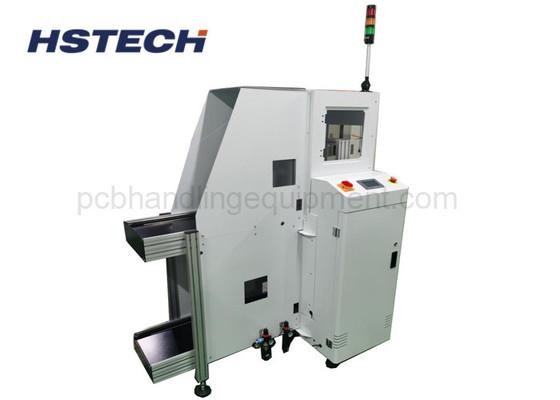

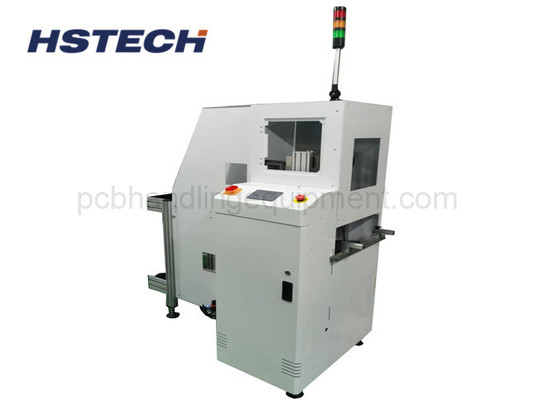

Enclosed Design Standard PCB Loader Machine with Dust-proof Cover
Application
This unit is used for loading the PCBs,and transporting the PCB on the SMT production line.
Features
1, Enclosed design, anti-dust, well protect the PCBs.
2, Observation window, operator can watch the working process clearly.
3, Stainless steel machine body, stable with long lifespan.
4, Stability enhanced by robust design.
5, Smooth and parallel width adjustment.
6, Three magazine racks application.
7, Top and bottom pneumatic clamps to secure magazine rack.
8, No PCB breakage guaranty during loading &unloading.
9,SMEMA compatible.
Specification
| Product name | PCB Loader Machine |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Model selection
| Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 180kg | 220kg | 260kg |
