SUS304 Stainless Steel SMT Cleaning Equipment with Emergency Stop Button

Brand Name:	HSTECH
Model Number:	HS-600
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Name:

Pneumatic Stencil Cleaning Machine

Usage:

Cleaning Stencils, Steel Mesh, Cooper Screen, Etc

Cleaning Solvent:

Alcohol

Power:

Pneumatic

Machine Type:

High Pressure Cleaner

Material:

SUS 304 Structure

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Product Description

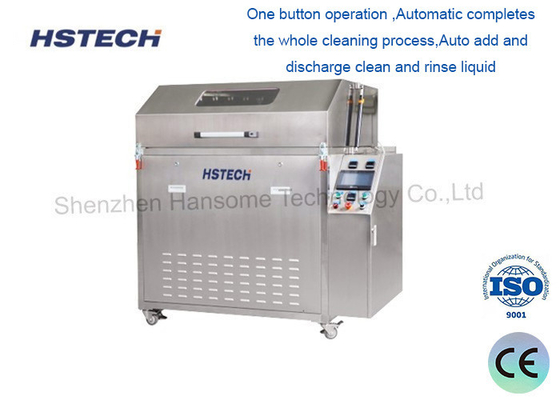

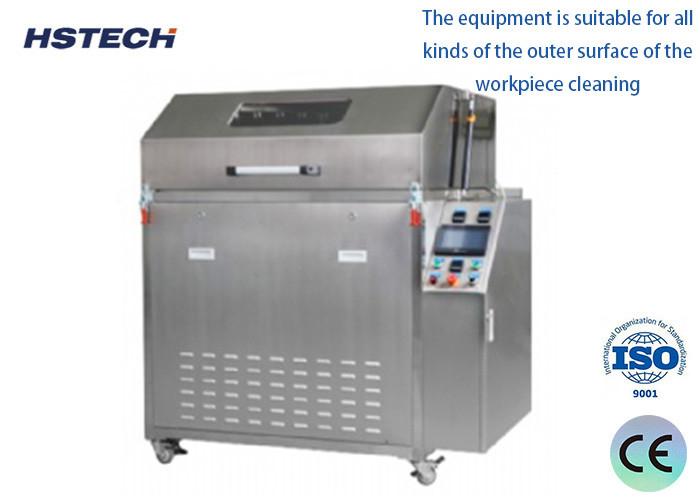

SUS304 Stainless Steel SMT Cleaning Equipment with Emergency Stop Button

Introduction

This machine used to cleaning stencil, steel mesh, copper screen, gule screen, etc SMT process screens.

Features

1. SUS304 stainless steel structure, the whole machine welded, durable, acid and alkali corrosion resistance, beautiful

appearance.

2.1 m diameter cleaning basket, placing multiple pieces of fixture at one time, to achieve batch cleaning.

3. Above, below, front spray rod, rotating cleaning basket, all-round coverage, cleaning completely without dead corners.

4. The cleaning solution completely penetrates into the bottom of the fixture and is cleaned thoroughly.

5.PLC program control, touch screen operation, cleaning parameters can be set and modified as required.

6. One-click simple operation, high pressure cleaning + high pressure rinsing + hot air drying process is automatically completed.

7. Clean liquid heating and insulation functions.

8. The cleaning solution and bleaching solution are recycled and filtered in the machine to save the solution and reduce the use cost.

9. The standard is equipped with the function of automatic adding and discharging bleaching liquid.

10. After cleaning, the fixture surface is clean, dry, ready to use.

Specification

Model	HS-600
Product name	Screen printer stencil cleaner
Machine metarial	Stainless steel, anti-fire, explosion-proof
Power	Pneumatic
Application	Stencil,cooper screen,gule screen
Stencil size	standard 29inch and below
Cleaning solvent	Alcohol
Cleaning liquid capacity	Max 45L,Min20L
Best cleaning fluid using volume	40L
Liquid consumption	120ml/pc
Cleaning method	Rotary double side pressure injection and high pressure air
Cleaning time	2~4 Min
Drying time	2~5 Min
External air supply	0.4Mpa~0.6Mpa
Consumer air quantity	400~600L/Min
Air outlet size	φ125*25mm
Solder dross filter mode	3 level filter(10um,5um,1um)
Weight	250kg
Machine dimension	980MM(L)700MM(W)1730MM(H)
