Touch Screen Control 4 Groups Coolers Tower Light Display PCB Buffer Machine

Brand Name:	HSTECH
Model Number:	HS-330BF
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Vertical PCB Buffer Machine

Application:

Buffering PCBs On SMT Production Line

PCB Dimension:

L(50*50)-(450*330)mm

Air Supply:

4-6bar,max 15L/min

Material:

Stainless Steel

Cooler:

4 Groups

Exhaust Port:

2 Pcs

Warranty:

1 Year

Packaging Details:

Wooden package, with foam

Supply Ability:

100 sets per month

Product Description

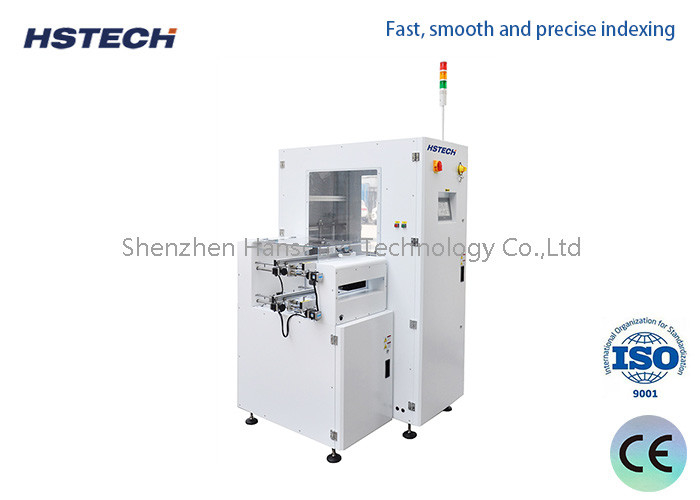

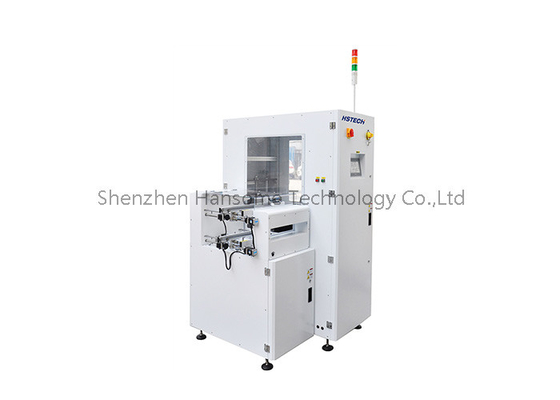

Touch Screen Control 4 Groups Coolers Tower Light Display PCB Buffer Machine

Introduction

This PCB buffer machine is a smart board buffering equipment, it has 25 layers to store the PCBs, each layer has its individual

signal, and each layer has named a number, when the downstream machine give signal to layer number, the buffer will accept the signal ans give order to the layer, then automatic select and transport the PCBs to the downstream machine.

Features

1.Use friendly soft touch screen control panel.

2. Operating mode:OK pass through or Stock,Ng reject,Awaiting definite, By Pass.

3. Durable rollers as conveying medium. ( no replacement of belts needed)

4.Fast,Smooth and Accurate indexing position. (Servo motor Drive)

5. ‘Threshold” system provided.

6. Smooth and parallel width adjustment.( Lead screw driven)

7. Small machine footprint.

8.SMEMA compatible.

Specification

MODEL	HS-HC250	HS-HC250
EFFICIENT PCB SIZE	5050~350250mm	5050~455330mm
MACHINE SIZE	125012001600mm	146013601600mm
WEIGHT	200kg	230kg

MODEL	HS-HC250	HS-HC250
EFFICIENT PCB SIZE	5050~350250mm	5050~455330mm
MACHINE SIZE	125012001600mm	146013601600mm
WEIGHT	200kg	230kg

TECHNICAL PARAMETERS

FUNCTION	This unit is used as a buffer between SMD machine and Inspection equipment.
Transport Height	910±20mm
Transportation Direction	L~R, or R~L
Board Collecting	Lifting PCB rack
Conveyor Transporting Speed	Adjustable
Rail Fixed Side	Front side or rear side
Operation Side	Front side
PCB Thickness	Min 0.6mm
Pitch Selection	1-4(10mm pitch)
Power Supply	220V,50/60Hz,±10%
Power	0.05kW
PCB Stock Capacity	Max 25pcs
Magazine	No
Signal	SMEMA
Options	Automatic width adjustment
