Advanced 90 Degree PCB Handling Equipment for Changing Flow Direction in SMT Production

Name

Advanced 90 Degree PCB Handling Equipment for Changing Flow Direction in SMT Production

Brand Name:	HSTECH
Model Number:	HS-SZ350
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

PCB Turn Conveyor

Suitable PCB Dimension:

50*50~450*350mm

Power Supply:

AC100-230V,50/60Hz

PLC:

MITSUBISHI

Sensor:

Sick

Contol:

LED Button

Turn Degree:

90 Degree, 180degree, 270degree

Signal:

SMEMA

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Advanced 90 Degree PCB Handling Equipment for Changing Flow Direction in SMT Production

Introduction

This machine used for change the PCB flow direction in the SMT production line.

Features

1.Fully enclosed box shape.
2.Rotation and translation movements are smooth, gentle and accurate..
3.Xinjie PLC contol, display control touch screen operation panel.
4.Clockwisetrapezoid,set 90 degree rotation (clockwise).
5.Mainly used to change the direction of the PCB board at the tum of the SMT production line to change the flow direction.
6.A set of electric control box.

Specification

Product name	PCB Turn Conveyor
Transport height	910±20mm
Transportation direction	L~R, or R~L
Cycle time	Approx 5 seconds
Track fixed side	Front side
Power supply	AC100-230V,50/60Hz,single phase
Air pressure	4-6bar
Air consumption	Max 10L/min
PCB thickness	Min 0.4mm
Signal	SMEMA

Model	HS-SZ350	HS-SZ460
Efficient PCB length	5050~450350mm	5050~550460mm
Machine dimension	7007501200mm	8408901200mm
Weight	150kg	180kg

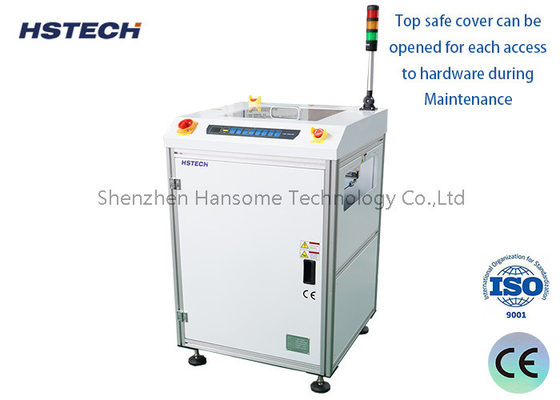

Advanced 90 Degree PCB Handling Equipment for Changing Flow Direction in SMT Production 0

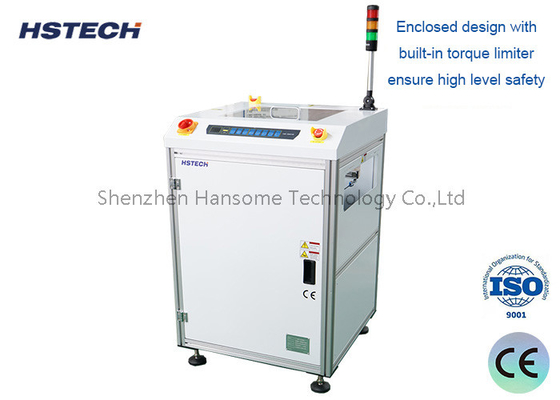

Advanced 90 Degree PCB Handling Equipment for Changing Flow Direction in SMT Production 1
