products details

Home Products

Stainless Steel Hand Crank Width Adjustable PCB Transporting Conveyor

Brand Name:	HSTECH
Model Number:	HS-460-CY
MOQ:	3 sets
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMT Conveyor

Other Name:

Link Conveyor

Color:

Blue,Grey,white

Transport Belt:

ESD Flat Belt

Belt Thickness:

1.0 Mm

Voltage:

1P AC 110V/220V 50/60HZ

Warranty:

1 Year

Packing:

Wrap, Wooden Box

Packaging Details:

Wooden box

Supply Ability:

500 pcs per month

Product Description

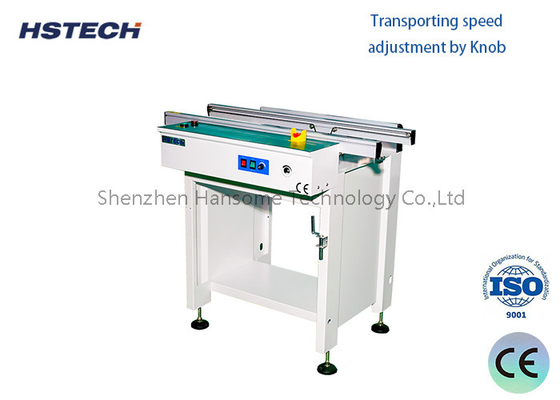

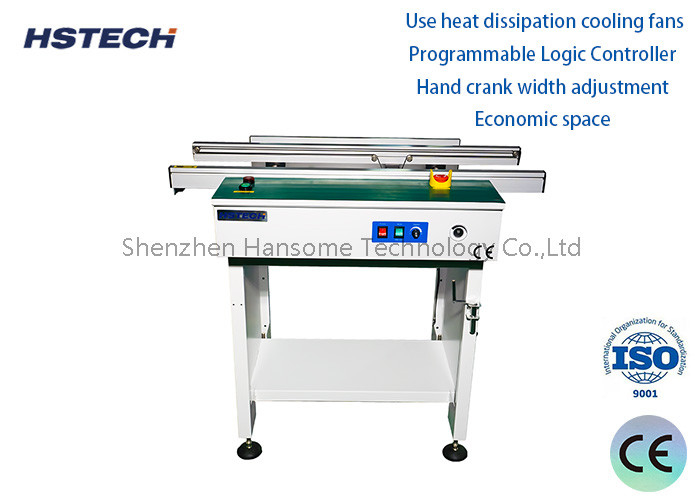

Stable Stainless Steel Manual Hand Crank Width Adjustable PCB Transporting Conveyor

This equipment is used to transfer the circuit board in the production line.

Features

1.Precise M-screw,manual guide rail width adjustable,which ensures two guide rails move smoothly.

2.Imported round special belt, and the patent tracks ,decrease the PCB drop problem.

3.Stucture is made by the aluminum alloy,more stable and longer lifespan.

4.Size is customized.

5.With SMEMA.

Specification

Model		HS-C600/HS-C1000
Power Supply		AC220V or AC110V 50/60Hz
PCB Size		5050~500390mm
Width adjustment		Hand crank
PCB Direction		Left to right or right to left
Transmission Height		900 ± 20 mm
Transmission Speed		0.5-20 meters per minute adjustable
Track fixed side		front side fixed( or back side fixed for option)
Machine Length		0.5M/0.6M/0.8M/1M/1.5M
Options		Light,Fan,Magnnifying,Cover,Inspection

Product optional features

1.According to customer requirements customized machine length;
2.Customize the number of stops according to customer requirements;
3.Imported permanent ESD belt is optional;
4.Optional LED lighting device.

Stainless Steel Hand Crank Width Adjustable PCB Transporting Conveyor 0

Stainless Steel Hand Crank Width Adjustable PCB Transporting Conveyor 1

Stainless Steel Hand Crank Width Adjustable PCB Transporting Conveyor 2

Stainless Steel Hand Crank Width Adjustable PCB Transporting Conveyor 3
