4 Axis Auto Screw Locking Machine w/ Feeder & M1-M6 Screw Range

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Automatic Screw Locking Machine

Feeding:

Suction Feeding

Axis:

4axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Port:

Shenzhen

Oem:

Yes

Warranty:

1 Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

High Accuracy 4 Axis Automatic Screw Locking Robot with Feeder

Introduction

The screw machine is a automtic equipment, with 4 axis moving system, double working station, single feeder, the whole machine composed of a feeding system and a lock-locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. This screw lock machine is a automation equipment, widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.

Features

1.Aircraft grade reinforced aluminum
Aircraft aluminum, die-cast aluminum structure, beautiful appearance, strong consistency, wear resistance.

2.Intelligent digital displayfeed material
High-precision feed mouth with sensors under thescrew automatically pre-go to the top, guiderail with a gap piece can be fine-tuned screw type.

3.Servomotor batch
Long life, can set two different torque, different speed belt torque display feedback, convenient and flexible adiustment.

4.Servo motor
High precision, positioning accuracy lock pay precision low noise, large torque, durable.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

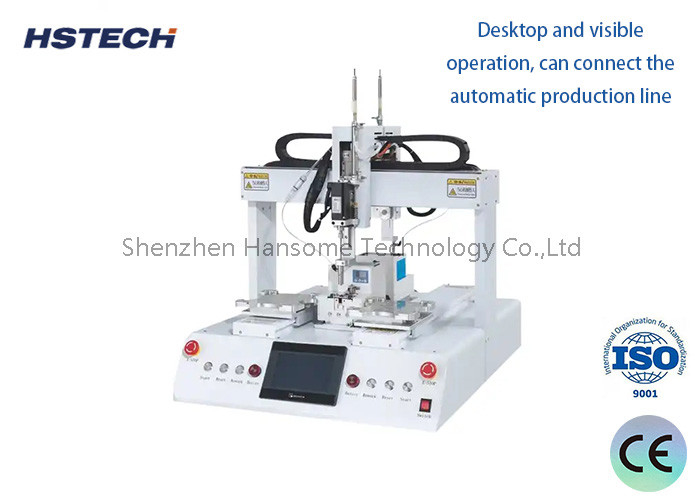

4 Axis Auto Screw Locking Machine w/ Feeder & M1-M6 Screw Range 0
