High Capacity Anti-Static Magazine for PCBs, 50pcs, Width Adjustable ESD Rack

Brand Name:	HSTECH
Model Number:	HS-M355
MOQ:	1pc
Price:	25~80usd/pc
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Storage Magazine

Dimension:

355*320*563mm

Type:

Anti-static

Color:

Black

Top And Bottm Board:

Durable Metal

Storage Capacity:

Max 50pcs

Condition:

New

Warranty:

1 Year

Packaging Details:

Carton package

Supply Ability:

500pcs per month

Product Description

High Capacity Anti-Static Magazine for PCBs, 50pcs, Width Adjustable ESD Rack

Introduction

A PCB Magazine or PCB Rack is made of volume conductive polypropylene and metal, which is used to transport the PCB boards for automated assembly lines. The anti-static PCB magazines racks are an ideal aid in the production, storage and transportation of PCBs. The strong and robust sidewall and metal frame guarantee that these PCB magazines racks are durable, which last very long time.

Specification

Overal size	355320565mm,also has other options
Suitable PCB size	5050~350250mm
PCB storage capacity	Max 50pcs
Side guid slot	Depth 3.0mm, width 5.0mm, pitch 10mm
Surface resistance	105Ω-109Ω
Heat-resistance	80 °C/120°C/200°C
Width adjustment	Gear Tracker / clips
Top and bottom base panel	Metal material
Type	Anti-static
Single weight	5kg

Features

1,This product is used for PCB loading machine to collect PCBs and convey them to the production line.

2,Top and bottom panels are made of tensile metal material to ensure the stability of the whole structure.

3,The whole frame is anti-static design, and can store up to 50 pieces of PCBs.

4,Width can be adjusted by gears and fixed by clips.

5,The rack is non-toxic, odourless, moisture-proof, corrosion-resistant, durable and stackable.

6, stable structure, will not bend during operation, the rack also has high temperature resistance.

7,Easy to install and dismantle, convenient for replacement and maintenance.

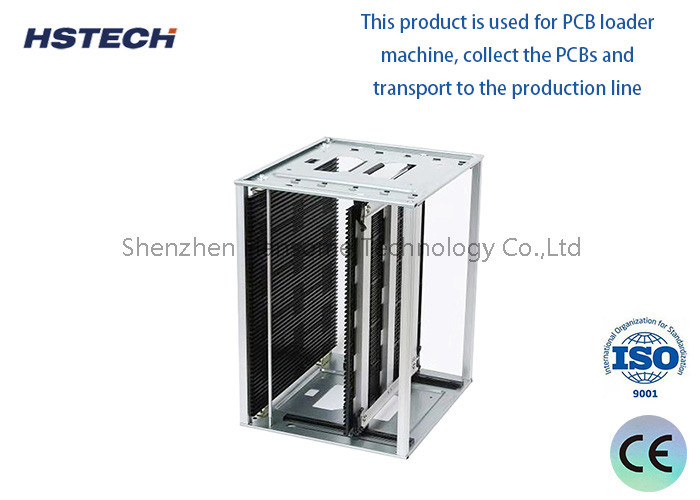

High Capacity Anti-Static Magazine for PCBs, 50pcs, Width Adjustable ESD Rack 0

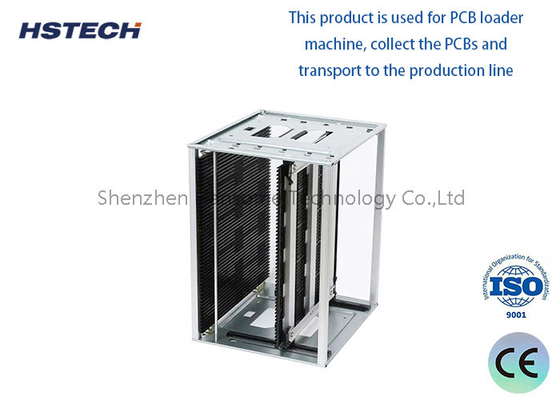

High Capacity Anti-Static Magazine for PCBs, 50pcs, Width Adjustable ESD Rack 1

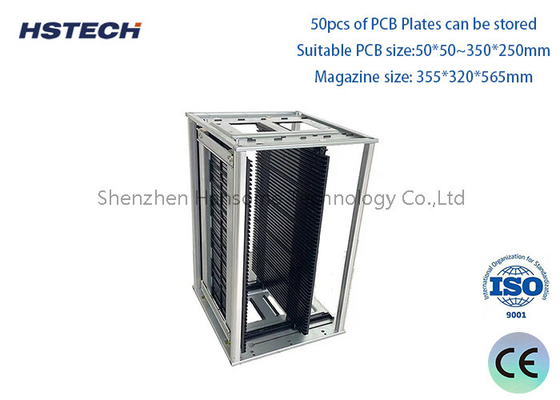

High Capacity Anti-Static Magazine for PCBs, 50pcs, Width Adjustable ESD Rack 2

High Capacity Anti-Static Magazine for PCBs, 50pcs, Width Adjustable ESD Rack 3
