50pcs Width Adjustable Anti-Static Magazine for PCBs, ESD Rack

Brand Name:	HSTECH
Model Number:	HS-M355
MOQ:	1pc
Price:	25~80usd/pc
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Storage Magazine

Dimension:

355*320*563mm

Type:

Anti-static

Color:

Black

Top And Bottm Board:

Durable Metal

Storage Capacity:

Max 50pcs

Condition:

New

Warranty:

1 Year

Packaging Details:

Carton package

Supply Ability:

500pcs per month

Product Description

High Capacity Anti-Static Magazine for PCBs, 50pcs, Width Adjustable ESD Rack

Introduction

This PCB Magazine,also called PCB storage rack is used for collecting the PCBs into the PCB loader machine,then loading to the SMT production ine, the magazines are made of volume conductive polypropylene and durable metal, the whole rack is anti-static, and the structure is very stable, which will well protect the PCBs from damage or bent.

Specification

Overal size	355320565mm,also has other options
Suitable PCB size	5050~350250mm
PCB storage capacity	Max 50pcs
Side guid slot	Depth 3.0mm, width 5.0mm, pitch 10mm
Surface resistance	105Ω-109Ω
Heat-resistance	80 °C/120°C/200°C
Width adjustment	Gear Tracker / clips
Top and bottom base panel	Metal material
Type	Anti-static
Single weight	5kg

Features

1. Metal flooring is made of high-quality metal with a smooth and bright surface.
2. Gear adjustment, the upper and lower base plate for metal plate gear track adjustment design.
3.PP guide groove, safety protection, anti-folding, good bearing capacity, durable stackable.
4. Gear groove structure, frame is stable.

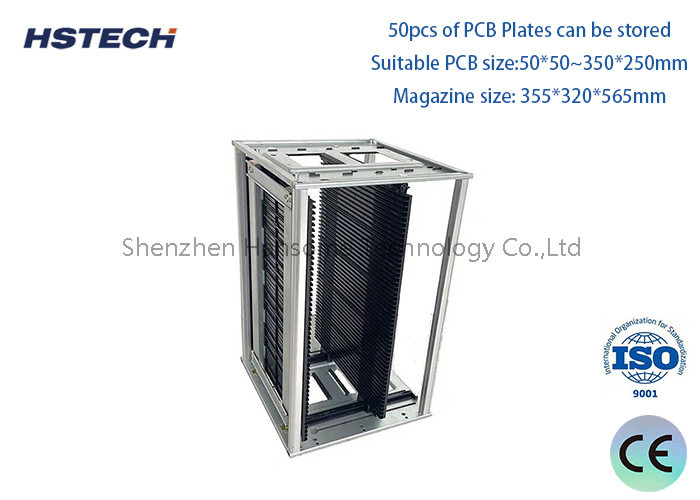

50pcs Width Adjustable Anti-Static Magazine for PCBs, ESD Rack 0

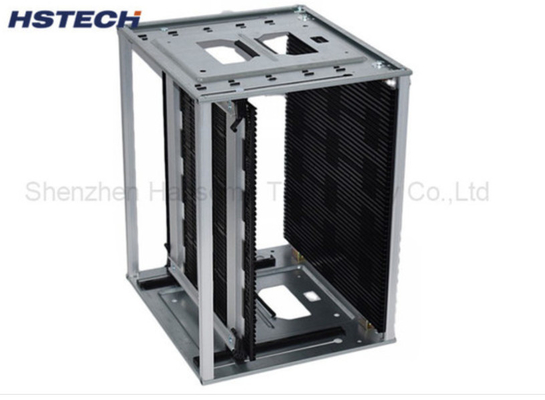

50pcs Width Adjustable Anti-Static Magazine for PCBs, ESD Rack 1

50pcs Width Adjustable Anti-Static Magazine for PCBs, ESD Rack 2

50pcs Width Adjustable Anti-Static Magazine for PCBs, ESD Rack 3
