Button Control Separately Magazine Collection PCB NG OK Unloader Equipment

Brand Name:	HSTECH
Model Number:	HS-N100L
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

NG/OK Unloader

Color:

White

Control:

PCL And Touch Screen

Magazine:

Separately, Each Hold 2 Magazine

Warrany:

1 Year

Display:

3 Color

Packaging Details:

Wooden package, with foam

Supply Ability:

100 sets per month

Product Description

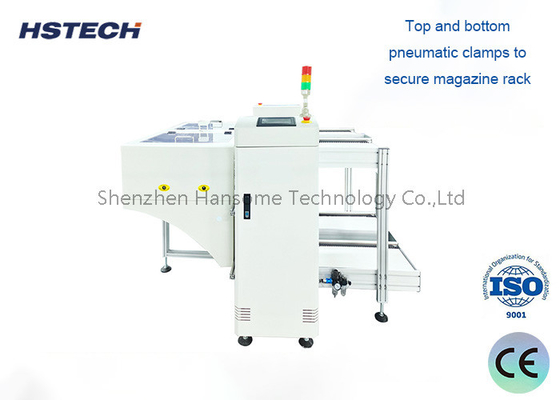

Button Control Separately Magazine Collection PCB NG / OK Unloader Equipment

Intorduction

This unit is used after the AOI, by recieving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.

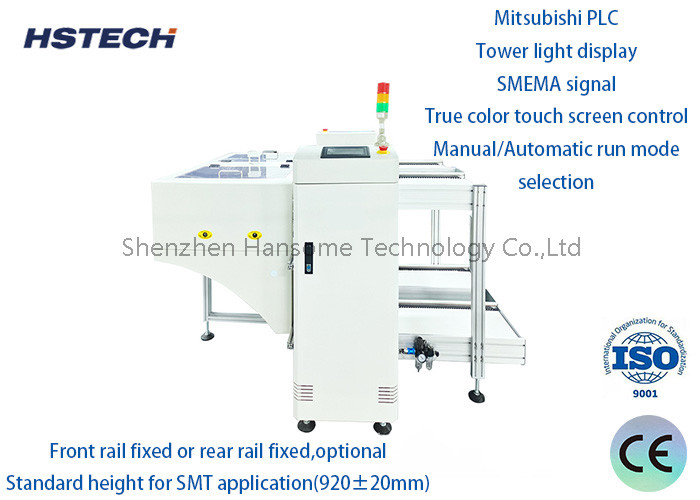

Features

1.The lift power uses a single-phase gear reducer motor.
2.Lifting drive adopts hard shaft guide rail, equipped with TBI ball screw drive.
3.The conveyor track is made of special profile with anti-collision stainless steel.
4.The conveyor chain is made of PC40 black rubber.
5.Control is controlled by PLC with light touch button switch operation.
6.Device status indication: Use a tri-color lamp with a buzzer.

7.Standard SMEMA communication interface.

Specification

Model:	HS-N100M	HS-N100L
Voltage:	AC100V/220V, 50/60Hz
Size:	M	L
PCB Size(mm):	(50x50)~(330x250)	(50x50)~(450x330)
Magazine racks size(mm):	355320560	460400560
Magazine Qty	Upper conveyor,1 pc; bottom conveyor 1pc
Air supply:	0.4~0.6Mpa,20L/Min max
PCB loading time:	6 seconds, or customized
Transport height:	900±20(mm)
Transport Direction:	L-R or R-L (optional)
PCB thickness:	Min 0.6mm
Up/down pitches:	1-4(10mm step)
Communication	SMEMA signal
Machine Dimension(mm):	155015501250	185017801250
Gross Weight:	Approx 220kg	Approx 320kg
