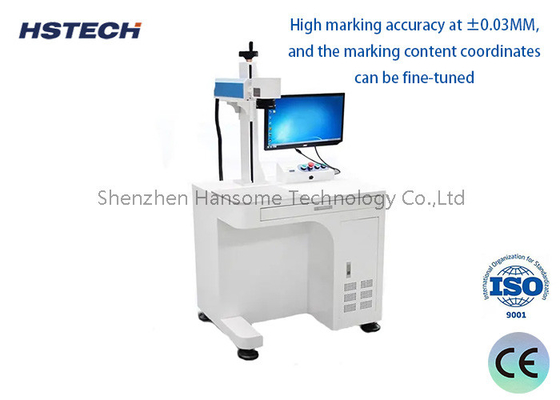

3W UV Laser Marking Machine-HS-UV3W, Stable Performance, 500Watts Power, 2-4X Speed, 0.003MM Accuracy

Name: 3W UV Laser Marking Machine-HS-UV3W, Stable Performance, 500Watts Power, 2-4X Speed, 0.003MM Accuracy
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-UV3W
Price: 85.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-UV3W
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

UV Laser Marking Machine

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.3 - 5mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Type:

Automatic

Weight:

30KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

3W UV Laser Marking Machine-HS-UV3W, Stable Performance, 500Watts Power, 2-4X Speed, 0.003MM Accuracy

Equipment function:

Excellent performance, easy to operateUV laser marking machine using 355nm UV laser, UV laser due to the focusing spot is verysmall, and the processing heat affected zone is small so you can carry out ultra-fine marking, special material marking marking effect has higher requirements of customerspreferred products.Compared with infrared laserthe focusing spot of ultraviolet light at 355nm is verysmallwhich can greatly reduce the mechanical deformation of the material and the processing heat affected zone is smallTherefore it is mainly used for ultra-fine marking, engraving, especially for the high-end market of ultra-fine processing such as electronic products. cosmetics medicines food and other high polymer materials.

Specification

Model	HS-UV3W
Output power	3W
Laser type	3W UV laser unit
Marking area	150*150mm(Optional)
Laser point diameter	<0.01mm
Laser output power	0~100% adjustable
Working frequency range	5~100KHz
Power stability	<±1%rms
Laser wave length	355nm
Marking type	Static marking/Dynamic marking
Marking speed	≤7000m/s
Min character	0.15mm
Repeat accuracy	±0.003mm
Laser unit	Chinese brand/Overseas brand(optional)
Cooling type	Air cooling
Power supply	AC220V,60Hz,15A
Software	Professional SW
Laser lifespan	20000Hrs
Machine size	900mm680mm1500
Machine weight	120kg

Features

1.SAVE TIME AND ENERGY
The marking speed is fast, saving labor,and the typed fonts are clear.

2.STATIC MARKING
free control of engraving depth, simple operation interface, support for file formats produced by commercial andfactory drawing software.

3.RED LIGHT FIXED FOCUS
Red light cross laser positioning, fastfocusing.

4.PREMIUM COMPONENTS
Good optical quality, long life, good precision,fast marking performance,clear marking.

Application

Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.
