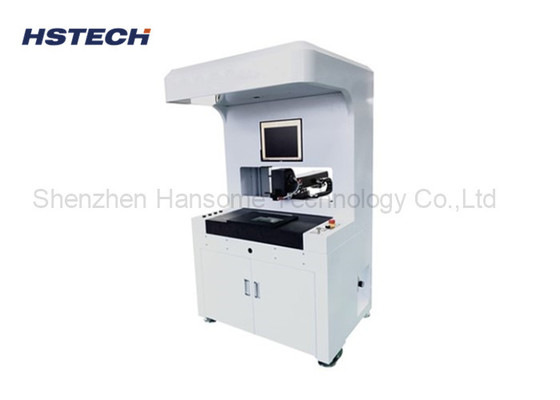

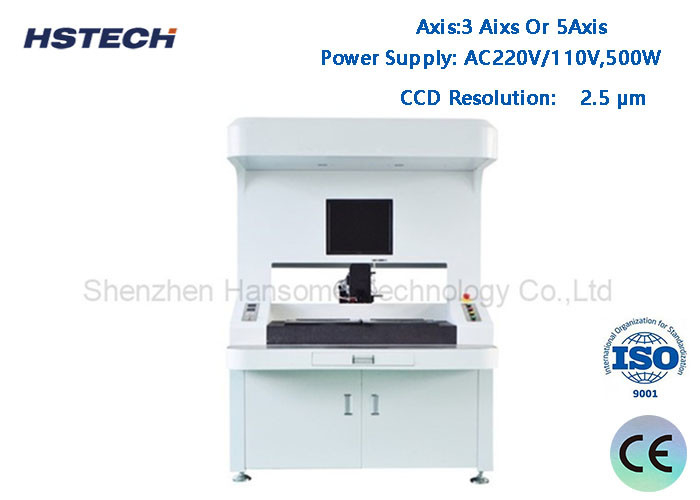

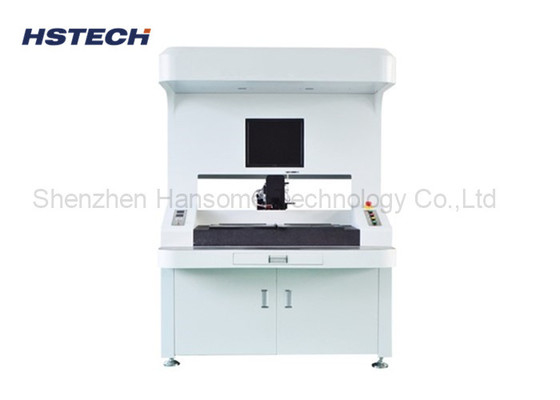

Automatic 3 Axis CCD Positioning Dual Table Visual Glue Dispensing Machine for High Precision Applications

Brand Name:	HSTECH
Model Number:	HS-VS400
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,TUV

Product Name:

3Axis Visual Glue Dispensing Machine

Axis:

3 Aixs Or 5Axis

Power Supply:

AC220V/110V,500W

CCD Resolution:

2.5 μm

Machine Weight:

600kg

Machine Dimension:

1060x1200x1700mm

Condition:

New

After-sales Service Provided:

Online Support,Video Technical Support

Packaging Details:

Wooden case,

Supply Ability:

100 sets per month

Highlight:

3 Axis Glue Dispensing Machine

CCD Positioning Visual Glue Dispenser

Dual Table Automatic Glue Dispenser

Product Description

Automatic CCD Positioning Dual Table 3 Axis Visual Glue Dispensing Machine

This advanced visual glue dispensing machine features intelligent CCD positioning technology and dual-table operation for high-efficiency production environments.

Product Features

Intelligent fast visual identification system for precise component recognition
Flexible product placement - camera automatically identifies product orientation regardless of angle
User-friendly Windows XP operating system for easy learning and operation
Hardware-controlled glue quantity delivery for fast, high-precision dispensing
Versatile applications including electronics, LED products, toys, semiconductors, speakers, and security products

Technical Specifications

Specification	Details
Product Name	Visual Glue Dispensing Machine
Model	HS-VS400
Transmission Height	920±20mm
Table Size	300×400mm
Table Quantity	Single or dual table (customer configurable)
Fixture	Customized
CCD Resolution	2.5 μm
Maximum Speed	1000mm/min
Glue Viscosity Range	≤5000 LPS
Repeat Accuracy	±0.02mm
Recognition Accuracy	±0.0125mil
Power Supply	AC220/110V, 500W
Air Pressure	0.5~0.7Mpa
Glue Tank	10L, manual stirring
Light Source	LED light source
Linear Guide Adjustment	Intelligent adjust
Programming Mode	Manual teaching
Software	Windows + dispensing software
Spraying Method	Automatic
Total Power	2.6kW
Machine Body	Stainless steel
Machine Weight	600kg
Machine Dimension	1060×1200×1700mm
