Automatic 3 Axis Selective Coating Machine with ±0.02mm Accuracy and Smart Width Adjustment for PCBA

Automatic 3 Axis Selective Coating Machine with ±0.02mm Accuracy and Smart Width Adjustment for PCBA

Brand Name:	HSTECH
Model Number:	HS-CC300
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,TUV

Product Name:

3Axis Selective Coating Machine

Axis:

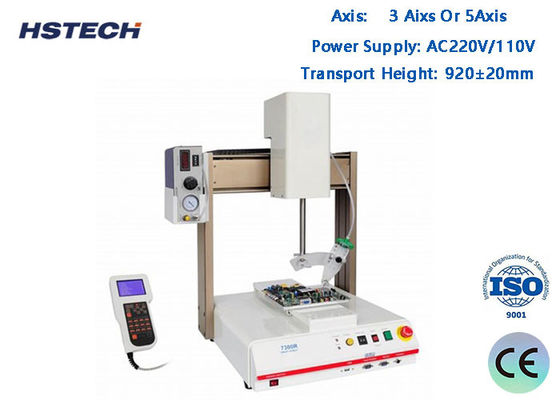

3 Aixs Or 5Axis

Power Supply:

AC220V/110V

Transport Height:

920±20mm

Machine Weight:

600kg

Machine Dimension:

1060x1200x1700mm

Packaging Details:

Wooden case, with foam inside

Supply Ability:

100 sets per month

Highlight:

±0.02mm Accuracy Selective Coating Machine

3 Axis Drive Conformal Coating Machine

Automatic Width Adjustment Glue Dispensing Machine

Product Description

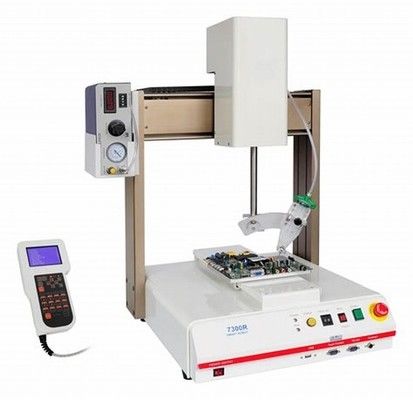

Automatic Selective Conformal Coating Machine for PCBA SMT Backstage Process

This advanced 3-axis selective coating machine is designed for precision conformal coating applications in PCBA SMT backstage processes, offering high-speed, reliable performance for various PCB types.

Key Features & Capabilities

X, Y, Z axis drive platform with precision ball screw and Fuji servo motor
Selective coating capability for various PCB types and configurations
Multiple coating patterns: straight line, circle, and arc dispensing
Eliminates spray shadow effect with effective edge component coating
High precision accuracy: ±0.02mm
High-speed, reliable transmission and control system
Dual-valve system for automatic spray and coating action switching
Smart automatic width adjustment function
Supports high-density PCB coating processes

Technical Specifications

Specification	Details
Product Name	Selective Conformal Coating Machine
Model	HS-CC300
Transmission Height	920±20mm
Conveyor Width	50-450mm (customizable)
Transmission Direction	Left to Right or Right to Left
Component Height	Up to 100mm maximum
PCB Board Edge Size	≥5mm
Transport Speed	0-12000mm/min
3 Axis Drive Speed	800mm/s
Repeat Accuracy	±0.02mm
Storage Programs	Up to 1000
Power Supply	AC220/110V
Air Pressure	4-kgf/cm²
Glue Tank	10L with manual stirring
Control Mode	Industrial PC + Motion Control Card
Linear Guide Adjustment	Intelligent adjustment
Programming Mode	Manual teaching
Communication Port	SMEMA
Lighting Source	Self-equipped lighting source
Detection Lighting Source	Self-equipped
Software	Windows + Coating Software
Driving Motor	Stepper Motor (2 pieces)
3 Axis Driving Mode	Servo Motor + Screw Driver Module + Electric Cylinder
Number of Rubber Valves	1 Spray Valve + 1 Dispensing Valve
Spray Width	3-20mm
Spraying Method	Automatic
Total Power	2.6kW
Machine Body	Stainless Steel
Machine Weight	600kg
Machine Dimension	1060×1200×1700mm
