4 Rotary Working Stations Text Screen Control LED Bulb Glue Dispenser with ±0.02mm Repeat Accuracy

Brand Name:	HSTECH
Model Number:	HS-BD4
MOQ:	1 pc
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

LED Bulb Glue Dispenser

Power Supply:

AC220V/50~60Hz/200W

Max Dispensing Diameter:

160mm(two Station),110mm(four Station)

Motor Speed:

Max 300mm/s

Repeat Accuracy:

±0.02mm

Warranty:

1 Year

Application:

LED Bulb, LED Par Light

Control Method:

Text Screen

Packaging Details:

Wooden package, with foam

Supply Ability:

100pcs per week

Highlight:

4 Rotary Working Stations Glue Dispensing Machine

Text Screen Control LED Bulb Glue Dispenser

±0.02mm Repeat Accuracy Automatic Glue Dispenser

Product Description

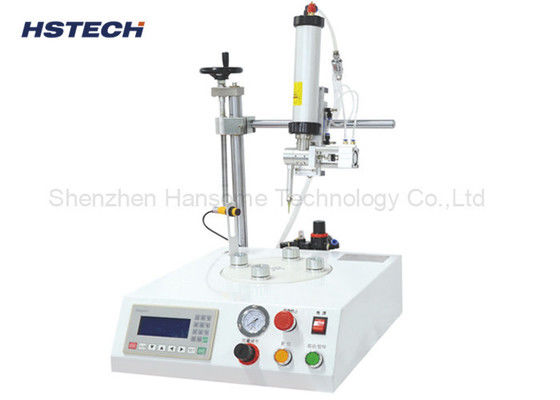

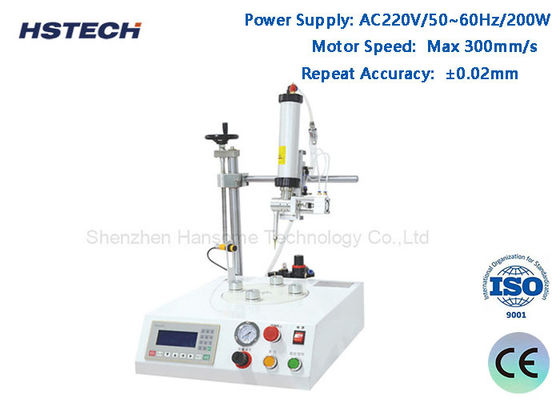

4 Rotary Working Stations Text Screen Automatic LED Bulb Glue Dispenser

This advanced LED bulb glue dispensing machine is designed to apply adhesive precisely on the base of LED bulbs and PAR lights, ensuring secure connection with lamp housings.

Application

The four-station rotary dispensing system features stations distributed at 90-degree intervals on a revolution disc. The revolution motor rotates 90 degrees each cycle to position workpieces under the gluing nozzle, while an auto-rotation motor drives the workpiece at consistent speed for uniform glue coating.

Technical Specifications

Model	HS-BD4
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive Mode	Precise Stepping Motor
Max Dispensing Diameter	160mm (two station), 110mm (four station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (LWH)	420mm532mm532mm
Weight	35Kg
Working Power	AC220V/50~60Hz/200W
Working Air Pressure	0.4~ 0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0~40℃, Humidity: 20~90%

Machine Features

Four work stations in continuous cycle operation with designed capacity of 1000~1500 pieces per hour
Integrated workpiece detector for intelligent gluing decision making
Flexible gluing patterns including full circle, single point, or segmented arc configurations
Dual operating modes supporting both four-station and two-station workflows
User-friendly touch screen interface with intuitive button controls for easy operation
Customizable settings optimized for different adhesive types and performance requirements
