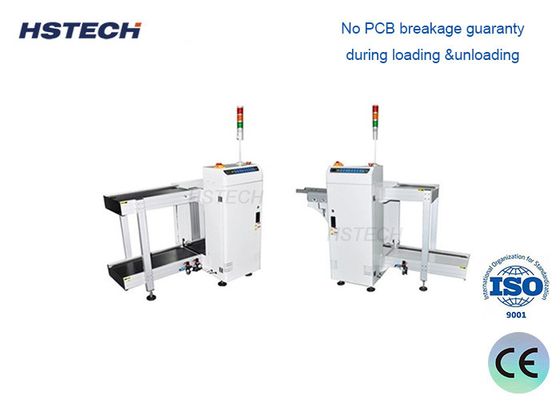

Light Display MITSUBISHI PLC PCB Unloader Board Handling Equipment

Brand Name:	HSTECH
Model Number:	HS-250DULD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Dual Rail PCB Unloader

Color:

White

PLC:

MITSUBISHI

Relay:

Schneider

Optoelectric Switch:

Omron

Driver Brand:

Meanwell

Packaging Details:

Wooden package, with foam

Supply Ability:

100 sets per month

Product Description

Specification

Model	HS-250DULD
PCB dimension	(5050)~(350250)mm
Magazine size	355320565mm
PCB loading time	Around 6s
Magazine replace time	30s
Power supply	AC100-230V,single Phase,max300A
Air supply	4-6 bar, Max 10L/min
Transport height	900±20mm
Transport direction	L to R,or R to L9(optional)
PCB thickness	Min 0.4mm
Magazine qty	top 1pc, down 1 pc, or customized
Step pitch options	1-4(10mm pitch)
Machine dimension	146015001200mm
Weight	Approx 210kg

Features

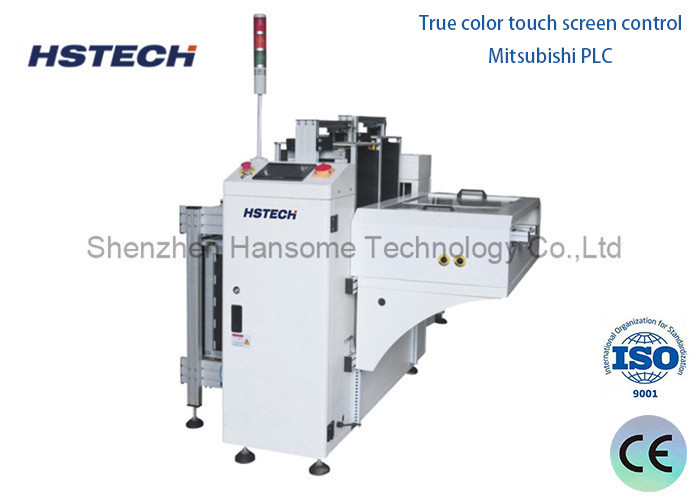

1, True color touch screen control.

2, Mitsubishi PLC.

3, Magazine capacity: top 1, bottom 1, or customized.

4, Selective pitch: 10mm,20mm,30mm,40mm.

5, PCB transport direction: L - R, or R - L,optional.

6, Manual/Automatic run mode selection.

7, Front rail fixed or rear rail fixed,optional.

8, Standard height for SMT application(920±20mm).

9, Tower light display.

Description of three-color light

Green light: indicates that the machine is inautomatic operation and is operating normally.

Yellow light: Indicates that it is in manualstate, and manual functions can be operated.
Red light: lt means it is in a stopped state,and the emergency stop button is pressed.
Red light flashes: abnormal operation andbuzzer sounds.

Light Display MITSUBISHI PLC PCB Unloader Board Handling Equipment 0

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.

We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
