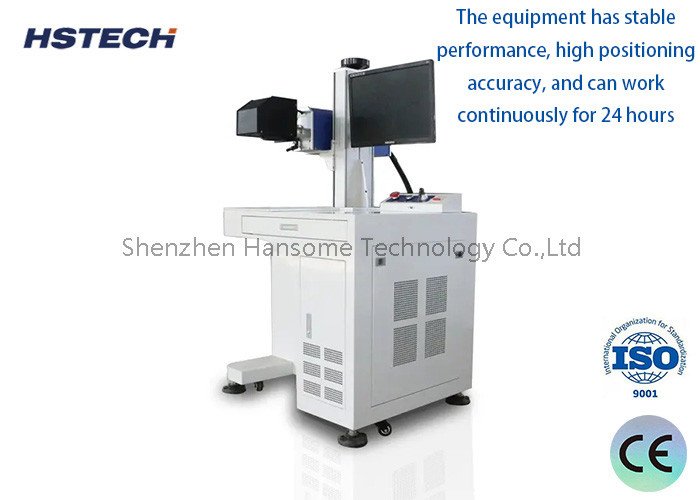

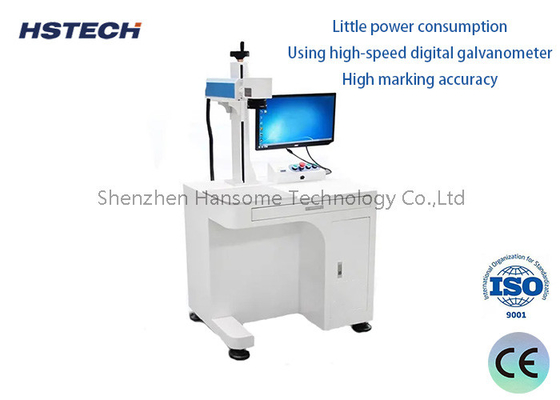

Accurate 3W UV Marking System with Air Cooling & Min 0.15mm Character

Brand Name:	HSTECH
Model Number:	HS-UV3W
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

UV Laser Marking Machine

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.3 - 5mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Type:

Automatic

Weight:

30KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Air Cooled 3W UV Laser Marking System with Min Character 0.15mm

Specification

Model	HS-UV3W
Output power	3W
Laser type	3W UV laser unit
Marking area	150*150mm(Optional)
Laser point diameter	<0.01mm
Laser output power	0~100% adjustable
Working frequency range	5~100KHz
Power stability	<±1%rms
Laser wave length	355nm
Marking type	Static marking/Dynamic marking
Marking speed	≤7000m/s
Min character	0.15mm
Repeat accuracy	±0.003mm
Laser unit	Chinese brand/Overseas brand(optional)
Cooling type	Air cooling
Power supply	AC220V,60Hz,15A
Software	Professional SW
Laser lifespan	20000Hrs
Machine size	900mm680mm1500
Machine weight	120kg

About Packaging

SMT production line equipment

1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
