Smart Touch Screen Control PCB Buffer Machine with Transport Height 900 plusmn 20 mm

Smart Touch Screen Control PCB Buffer Machine with Transport Height 900 plusmn 20 mm

Smart Touch Screen Control PCB Buffer Machine with Transport Height 900 plusmn 20 mm

Brand Name:	HSTECH
Model Number:	HS-330BF
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

Vertical PCB Buffer Machine

Application:

Buffering PCBs On SMT Production Line

PCB Dimension:

L(50*50)-(450*330)mm

Air Supply:

4-6bar,max 15L/min

Material:

Stainless Steel

Cooler:

4 Groups

Exhaust Port:

2 Pcs

Warranty:

1 Year

Packaging Details:

Wooden package, with foam

Supply Ability:

100 sets per month

Product Description

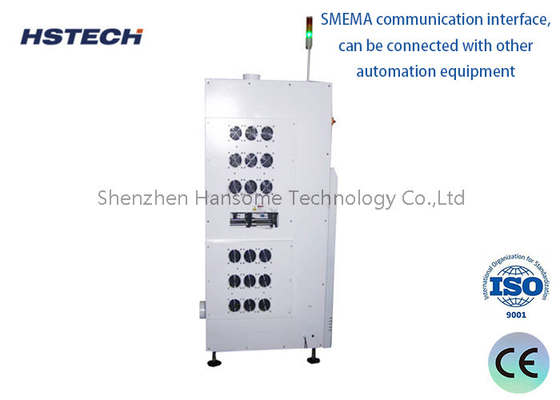

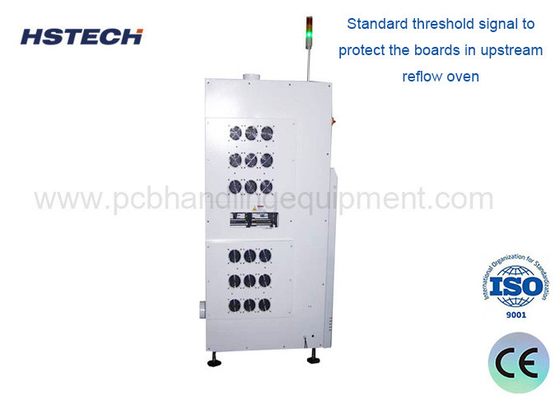

Touch Screen Control 4 Groups Coolers Tower Light Display PCB Buffer Machine

Introduction

This PCB buffer machine is a smart board buffering equipment, it has 25 layers to store the PCBs, each layer has its individual

signal, and each layer has named a number, when the downstream machine give signal to layer number, the buffer will accept the

signal ans give order to the layer, then automatic select and transport the PCBs to the downstream machine.

Specification

Model:		HS-BF330
Voltage:		AC220V,50/60Hz
PCB Dimension:		L(5050)-(450330)mm
Air supply:		4-6 bar,max 15L/min
Transport height:		900±20(mm)
Transport Direction:		L-R or R-L (optional)
PCB thickness:		min 0.46mm
Up/down pitches:		1-4(10mm step)
Store Capacity		25pcs or customized
Cycle time		Around 15 seconds
Communication		SMEMA
Optional		Fan, observation window
Certification		CE
Machine Dimension:		60011501560mm
Gross Weight:		280kg

Smart Touch Screen Control PCB Buffer Machine with Transport Height 900 plusmn 20 mm 0

Smart Touch Screen Control PCB Buffer Machine with Transport Height 900 plusmn 20 mm 1
