Manual & Automatic BGA Rework Station with ±0.01mm Mounting Accuracy MCGS Touch Screen Control and 2600W Total Power

Brand Name:	HSTECH
Model Number:	HS-620
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

BGA Rework Station

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.3 - 5mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Type:

Automatic

Weight:

30KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

±0.01mm Mounting Accuracy BGA Rework Station

MCGS Touch Screen Control BGA Chip Repair Machine

2600W Total Power PCB Handling Equipment

Product Description

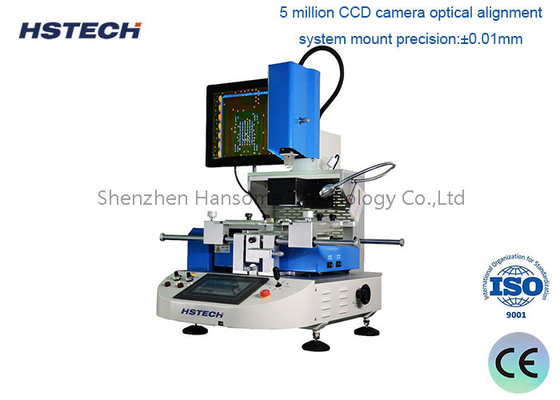

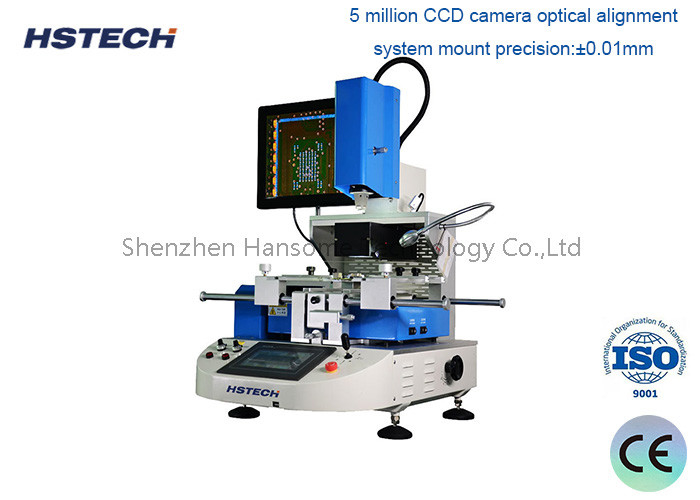

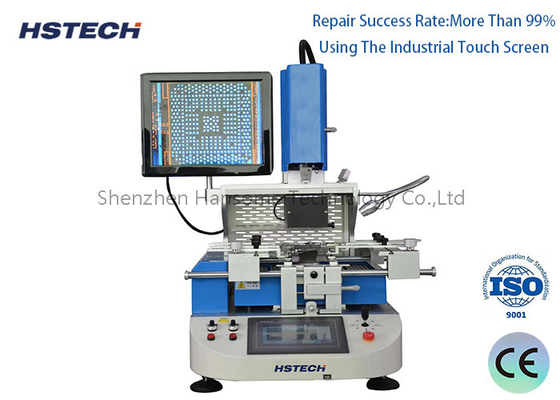

Manual & Automatic Laser Position MCGS Touch Screen Control BGA Rework Station

Advanced BGA rework station featuring manual and automatic laser positioning with MCGS touch screen control for precision component repair.

Technical Specifications

Specification	Details
Model	HS-620
Power Supply	AC 220V±10% 50/60Hz
Total Power	3500W
Heater Power	Upper temp.zone 1200W, second temp.zone 1200W, IR temp.zone 2700W
Electric Material	Driving motor + PLC smart temp. controller + color touch screen
Temperature Control	Independent temperature controller with precision up to ±1℃
Temperature Interface	1 piece
Locating System	V-shape slot, adjustable PCB support jigs, laser light for fast centering and positioning
Overall Dimensions	L650mm × W630mm × H850mm
PCB Size Range	Max 450mm × 390mm, Min 10mm × 10mm
BGA Size Range	Max 80mm × 80mm, Min 1mm × 1mm
Machine Weight	60KG
Application	Chips, phone motherboard repair, and electronic component rework

Product Gallery

Additional Products & Services

We provide comprehensive SMT solutions including machine parts and equipment such as: Feeders, Nozzles, PCB board turnover carts, SMT grease, Solder paste mixers, SMD counters, Laser Sensors, Filters, KIC thermal profilers, and Servo Motors.

At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to serving your business needs. Contact us for any questions or additional information.
