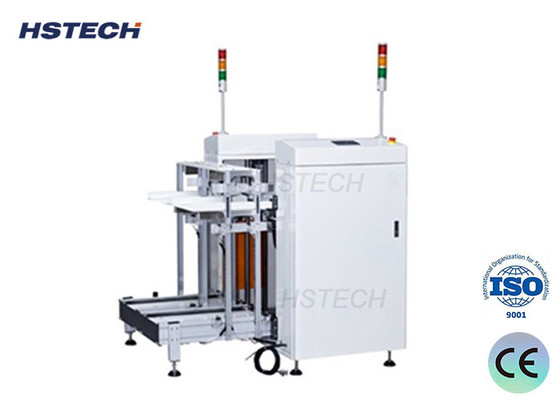

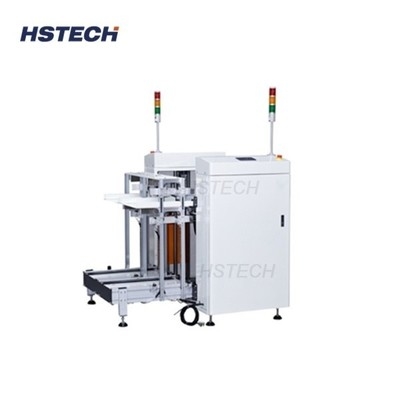

PLC Control System 6 Magazines Loading Capability Double Track Unloader

Brand Name:	HSTECH
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Double Track Unloader

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Power Consumption:

200W

Type:

Automatic

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

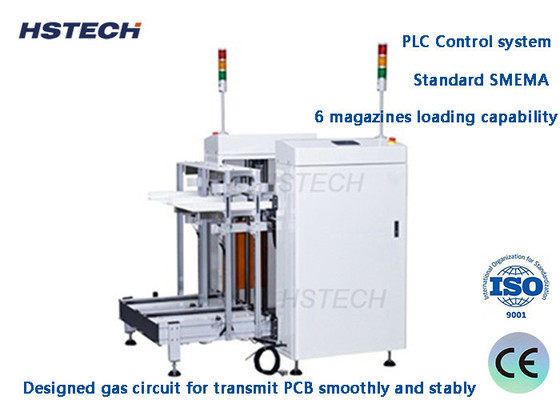

PLC Control System 6 Magazines Loading Capability Double Track Unloader

Main Function
This unit is used to collect PCBs into two magazines from dual track equipment at the same time.
Discription
a, PLC Control system

b, Dual tracks and dual lift platforms design

c, 6 magazines loading capability

d, Designed gas circuit for transmit PCB smoothly and stably

e, Standard SMEMA

Specs

Type	DU-250	DU-300	DU-400	DU-500
Power Supply	AC110V/AC220V 50H60Hz	AC110V/AC220V 50H60Hz	AC110V/AC220V 50H60Hz	AC110V/AC220V 50H60Hz
Air Supply	5kgf/C M2	5kgf/C M2	5kgf/C M2	5kgf/C M2
PCB Size(mm)	350*50~250	445*50~330	530*50~390	535*50~460
PCB Direction	left to right or right to left	left to right or right to left	left to right or right to left	left to right or right to left
Magazine Size(mm)	335320565	460400565	535460565	535530565
Step pitches(mm)	10,20,30,40	10,20,30,40	10,20,30,40	10,20,30,40
Transport Height(mm)	900±20	900±20	900±20	900±20
Transmission Speed	6m/S	10m/S	10m/S	10m/S
Main Motor Power	440W	440W	440W	440W
Machine Size(mm)	151015301250	191016301250	216017601250	216019001250
Weight(kgs)	320	350	380	410
