| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-460-CY |
| Minimum Order Quantity: | 2 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 5~7 days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
| Product Name: | PCB Linking Conveyor | Material: | Stainless Steel |
|---|---|---|---|
| Color: | White | Transport Belt: | ESD Flat Belt |
| Condition: | New | Voltage: | 1P AC 110V/220V 50/60HZ |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support |

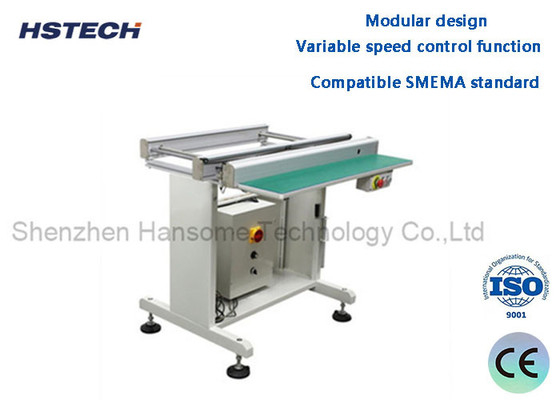

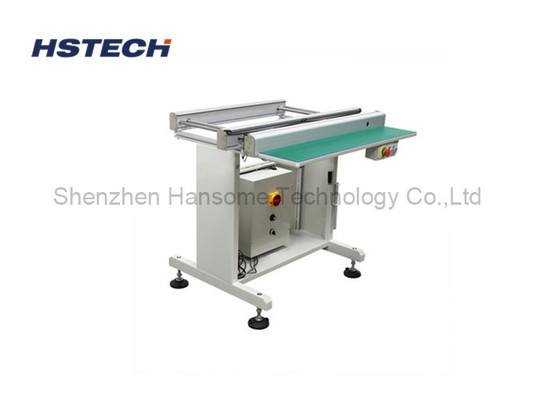

Variable Speed Control Function Iron Square Tube Framwork Modular Design PCB Linking Conveyor
Features
1, Modular design.
2, Iron square tube framwork, powder coating on surface.
3, Variable speed control function.
4, Sturdy structural design improves the stability of the equipment.
5, Use stainless steel screw,smooth and parallel width adjustment.
6, Compatible SMEMA standard.
Specification
| Model | HS-460-CY | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*460mm | |||||
| Width adjustment | Hand shake | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
