| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-C1500 |
| Minimum Order Quantity: | 3 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 10~14 days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
| Product Name: | Linking Conveyor | Other Name: | SMT Conveyor |
|---|---|---|---|
| Transporting Length: | 1500mm | Transport Belt: | ESD Flat Belt |
| Working Table: | ESD Table | Width Adjustment: | Hand Crank/ Optional Automatic |
| Warranty: | 1 Year | Packing: | Wrap, Wooden Box |

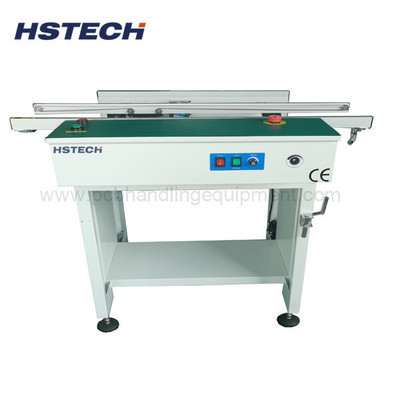

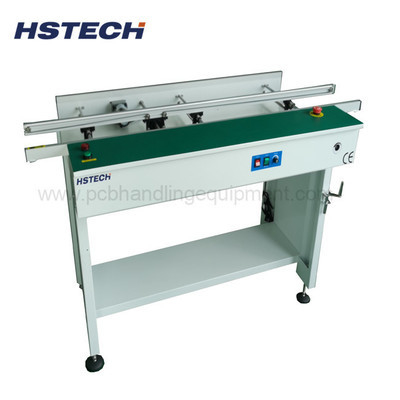

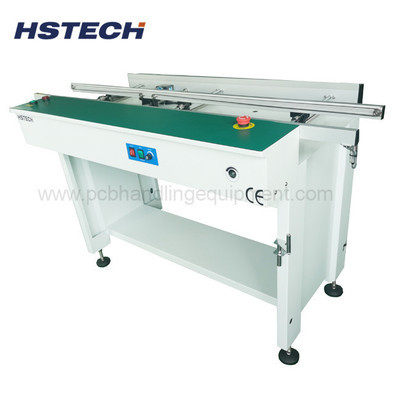

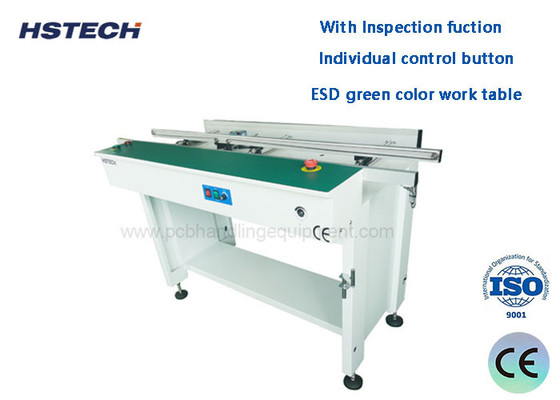

Sick Sensor 1500mm Length ESD Belt PCB Linking Conveyor With Inspection Fuction Individual Control Button
Features
1, With Inspection fuction, individual control button.
2, 1500mm in length, width adjustment at 390mm.
3, Transporting speed adjustment by Knob.
4, ESD green color work table.
5, Aluminum alloy transporting rail.
6, LED button control, speed adjustment motor.
7, Optional function available, tower light, inspection, dust cover, etc.
8, Customized requirement available.
9, Length available, 600mm, 1000mm, 1500mm, or optional.
10, SMEMA signal for inline connection.
Specification
| Model | HS-C1500/HS-C1500S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
